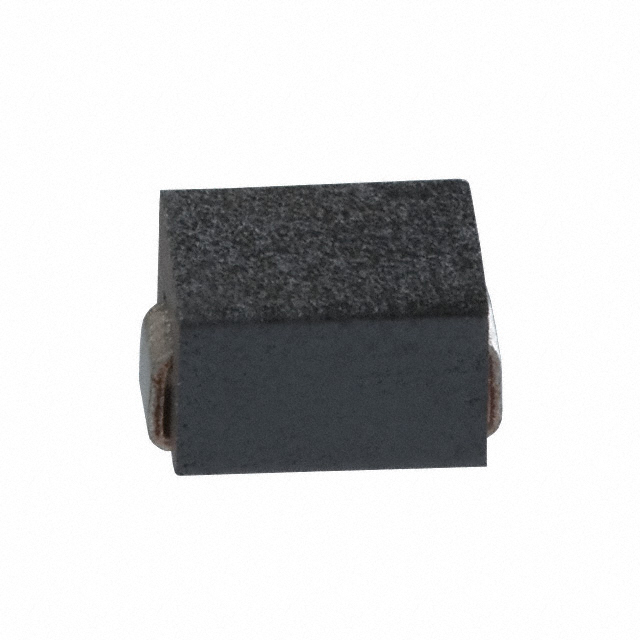

PM2002-300
ObsoleteBourns Inc.
FERRITE BEAD 47 OHM 1812 1LN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PM2002-300
ObsoleteBourns Inc.
FERRITE BEAD 47 OHM 1812 1LN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PM2002-300 |
|---|---|
| DC Resistance (DCR) (Max) [Max] | 0.6 mOhm |
| Height (Max) [Max] [z] | 0.116 in |
| Height (Max) [Max] [z] | 2.94 mm |
| Impedance @ Frequency | 47 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1812 |
| Package / Case | 4631 Metric |
| Size / Dimension [x] | 4.6 mm |
| Size / Dimension [x] | 0.181 " |
| Size / Dimension [y] | 3.1 mm |
| Size / Dimension [y] | 0.122 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PM2002 Series
47 Ohms @ 100 MHz 1 Ferrite Bead 1812 (4631 Metric) 0.6mOhm
