PNG.M1.4SL.LG

Active

LEMO

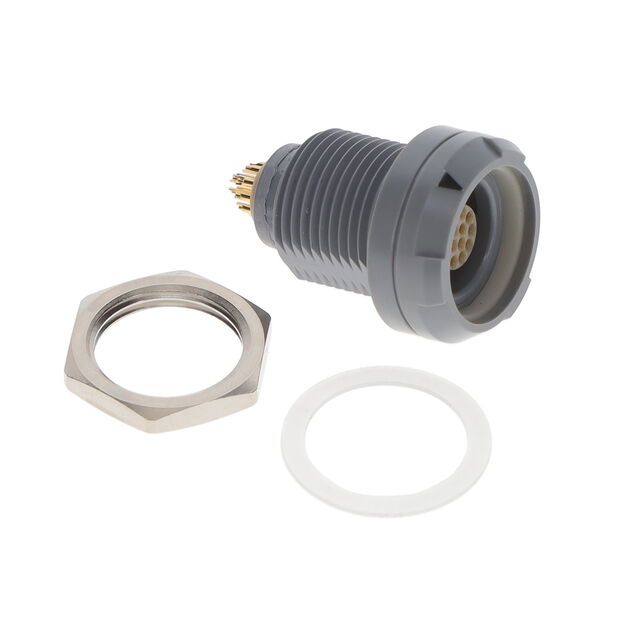

CONN RCPT FMALE 14P SOLDER CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 14P SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PNG.M1.4SL.LG	PNG.M1 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray	Gray
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	2 A	2 - 3 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Ingress Protection	IP64 - Dust Tight, Water Resistant	IP64 - Dust Tight, Water Resistant
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions	14	10 - 14
Operating Temperature [Max]	170 °C	90 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	G	G
Primary Material	Plastic	Plastic
Shell Material	Polyetherimide (PEI)	Polysulfone (PSU), Polyetherimide (PEI)
Shell Size - Insert	M14	M14, M10
Shielding	Unshielded	Unshielded

CONN RCPT FMALE 14P SOLDER CUP

Part	Applications	Contact Finish - Mating	Mounting Feature	Shielding	Color	Current Rating (Amps)	Number of Positions	Connector Type	Shell Material	Ingress Protection	Fastening Type	Insert Material	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Shell Size - Insert
LEMO PNG.M1.4GL.LG	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Bulkhead - Rear Side Nut	Unshielded	Gray	2 A	14	Receptacle, Female Sockets	Polysulfone (PSU)	IP64 - Dust Tight, Water Resistant	Detent Lock, Push-Pull	Polyetheretherketone (PEEK)	G	90 °C	-50 °C	Plastic	M14
LEMO PNG.M1.4SL.LG	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Bulkhead - Rear Side Nut	Unshielded	Gray	2 A	14	Receptacle, Female Sockets	Polyetherimide (PEI)	IP64 - Dust Tight, Water Resistant	Detent Lock, Push-Pull	Polyetheretherketone (PEEK)	G	170 °C	-50 °C	Plastic	M14
LEMO PNG.M1.0SL.LG	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	Bulkhead - Rear Side Nut	Unshielded	Gray	3 A	10	Receptacle, Female Sockets	Polyetherimide (PEI)	IP64 - Dust Tight, Water Resistant	Detent Lock, Push-Pull	Polyetheretherketone (PEEK)	G	170 °C	-50 °C	Plastic	M10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Circular Connector Receptacle, Female Sockets Solder Cup
