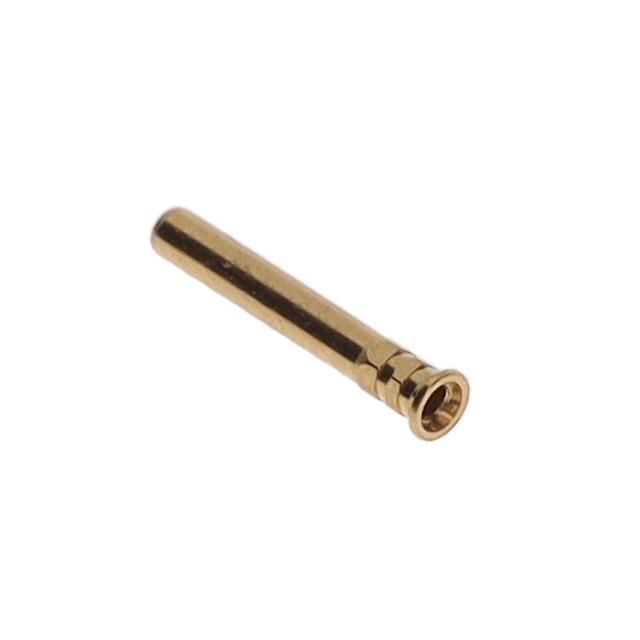

0553-3-15-15-21-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.022 HEX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0553-3-15-15-21-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.022 HEX

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0553-3-15-15-21-27-10-0

Accepts Pin Diameter [Max]	0.022 in
Accepts Pin Diameter [Max]	0.56 mm
Accepts Pin Diameter [Min]	0.38 mm
Accepts Pin Diameter [Min]	0.015 "
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.4 mm
Flange Diameter [diameter]	0.055 in
Length - Overall [x]	0.282 in
Length - Overall [x]	7.16 mm
Mounting Hole Diameter [diameter]	0.041 in
Mounting Hole Diameter [diameter]	1.04 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Socket Depth	6.76 mm
Socket Depth	0.266 in
Tail Type	No Tail
Termination	Press-Fit, Hex

0553-3 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Termination	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Socket Depth [z]	Socket Depth [z]	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Socket Depth	Socket Depth
Mill-Max Manufacturing Corp. 0553-3-15-15-21-14-10-0	-55 °C	125 °C	0.79 mm	0.031 in	0.015 "	0.51 mm	0.02 "	0.38 mm	Beryllium Copper	0.041 in	1.04 mm	0.282 in	7.16 mm	Press-Fit Hex	No Tail	1.4 mm	0.055 in	Gold	0.154 in	3.91 mm	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 0553-3-15-80-21-84-10-0	-55 °C	125 °C	0.79 mm	0.031 in	0.015 "	0.51 mm	0.02 "	0.38 mm	Beryllium Copper	0.041 in	1.04 mm	0.282 in	7.16 mm	Press-Fit Hex	No Tail	1.4 mm	0.055 in	Tin	0.154 in	3.91 mm	100 µin	2.54 µm
Mill-Max Manufacturing Corp. 0553-3-15-80-11-14-10-0	-55 °C	125 °C	0.79 mm	0.031 in	0.015 "	0.51 mm	0.02 "	0.38 mm	Beryllium Copper	0.041 in	1.04 mm	0.282 in	7.16 mm	Press-Fit Hex	No Tail	1.4 mm	0.055 in	Gold	0.154 in	3.91 mm	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 0553-3-15-01-21-02-10-0	-55 °C	125 °C	0.79 mm	0.031 in					Beryllium Copper	0.041 in	1.04 mm	0.282 in	7.16 mm	Press-Fit Hex	No Tail	1.4 mm	0.055 in	Tin-Lead			100 µin	2.54 µm	0.38 mm	0.022 in	0.015 "	0.56 mm	6.76 mm	0.266 in
Mill-Max Manufacturing Corp. 0553-3-15-80-21-14-10-0	-55 °C	125 °C	0.79 mm	0.031 in	0.015 "	0.51 mm	0.02 "	0.38 mm	Beryllium Copper	0.041 in	1.04 mm	0.282 in	7.16 mm	Press-Fit Hex	No Tail	1.4 mm	0.055 in	Gold	0.154 in	3.91 mm	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 0553-3-15-01-21-14-10-0	-55 °C	125 °C	0.79 mm	0.031 in					Beryllium Copper	0.041 in	1.04 mm	0.282 in	7.16 mm	Press-Fit Hex	No Tail	1.4 mm	0.055 in	Gold			10 Áin	0.25 Ám	0.38 mm	0.022 in	0.015 "	0.56 mm	6.76 mm	0.266 in
Mill-Max Manufacturing Corp. 0553-3-15-80-11-84-10-0	-55 °C	125 °C	0.79 mm	0.031 in	0.015 "	0.51 mm	0.02 "	0.38 mm	Beryllium Copper	0.041 in	1.04 mm	0.282 in	7.16 mm	Press-Fit Hex	No Tail	1.4 mm	0.055 in	Tin	0.154 in	3.91 mm	100 µin	2.54 µm
Mill-Max Manufacturing Corp. 0553-3-15-15-21-27-10-0	-55 °C	125 °C	0.79 mm	0.031 in					Beryllium Copper	0.041 in	1.04 mm	0.282 in	7.16 mm	Press-Fit Hex	No Tail	1.4 mm	0.055 in	Gold			30 Áin	0.76 Ám	0.38 mm	0.022 in	0.015 "	0.56 mm	6.76 mm	0.266 in
Mill-Max Manufacturing Corp. 0553-3-15-80-11-27-10-0	-55 °C	125 °C	0.79 mm	0.031 in	0.015 "	0.51 mm	0.02 "	0.38 mm	Beryllium Copper	0.041 in	1.04 mm	0.282 in	7.16 mm	Press-Fit Hex	No Tail	1.4 mm	0.055 in	Gold	0.154 in	3.91 mm	30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.40
		10	$ 1.22
		25	$ 1.17
		50	$ 1.14
		100	$ 1.09
		250	$ 0.98
		500	$ 0.91
		1000	$ 0.78
		3000	$ 0.72

Description

General part information

0553-3 Series

Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) No Tail Press-Fit, Hex
