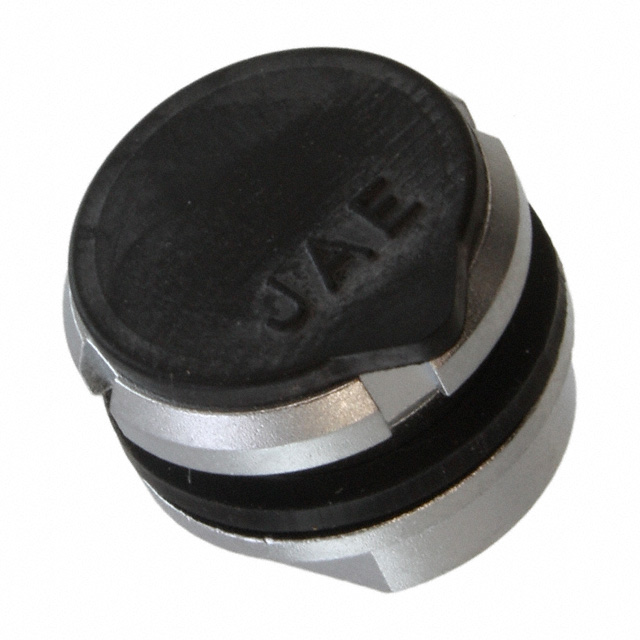

CONN RCPT FMALE 8POS SOLDER CUP

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT FMALE 8POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JB5CS08FN00

Applications	Telecommunications, Medical, Test & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Dust Cap
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chromium
Shell Material	Copper Alloy
Shell Size - Insert	S
Shielding	Shielded

Part	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Color	Connector Type	Shell Finish	Shielding	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Mounting Feature	Insert Material	Current Rating (Amps)	Number of Positions	Applications	Shell Material	Ingress Protection	Primary Material	Contact Finish - Mating	Features
JAE Electronics JB5CS08FN00	Keyed	85 °C	-55 °C	Push-Pull	Silver	Receptacle Female Sockets	Chromium	Shielded	Copper Alloy	30 Áin	0.76 Ám	S	Bulkhead - Front Side Nut	Synthetic Resin	2 A	8	Medical Telecommunications Test & Measurement	Copper Alloy	IP68 - Dust Tight Waterproof	Metal	Gold	Dust Cap
JAE Electronics JB5CS08FN00-RK	Keyed	85 °C	-55 °C	Push-Pull	Silver	Receptacle Female Sockets	Chromium	Shielded	Copper Alloy	30 Áin	0.76 Ám	S	Bulkhead - Front Side Nut	Synthetic Resin	2 A	8	Medical Telecommunications Test & Measurement	Copper Alloy	IP68 - Dust Tight Waterproof	Metal	Gold	Dust Cap

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder Cup
