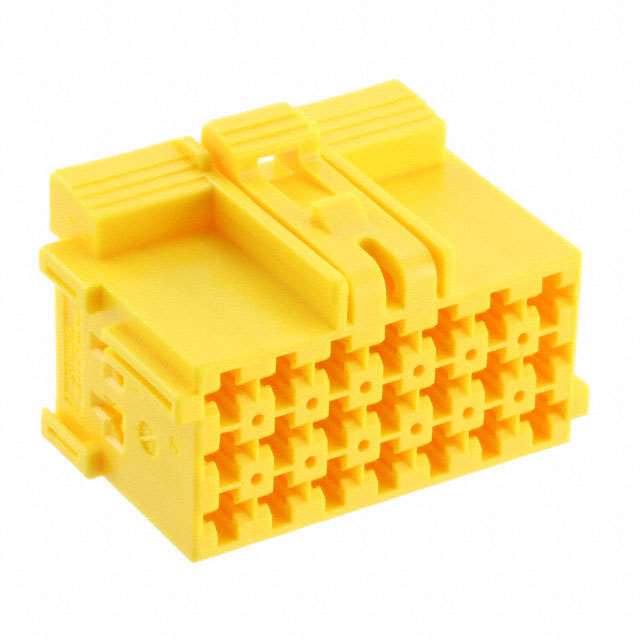

1-967625-5
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 21POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-967625-5
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 21POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-967625-5 | 967625 Series |
|---|---|---|
| Color | Yellow | Green, Yellow, Gray, Blue |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Holder | Latch Holder |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 21 | 21 |
| Number of Rows | 3 | 3 |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Row Spacing | 5.51 mm | 5.51 mm |
| Row Spacing [x] | 0.217 in | 0.217 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.74 | |
| 10 | $ 0.70 | |||
| 25 | $ 0.67 | |||
| 50 | $ 0.66 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.57 | |||
967625 Series
CONN RCPT HSG 21POS 5.00MM
| Part | Connector Type | Note | Color | Pitch [x] | Pitch [x] | Number of Rows | Fastening Type | Number of Positions | Row Spacing [x] | Row Spacing | Contact Type | Mounting Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967625-4 | Receptacle | Contacts Not Included | Green | 5 mm | 0.197 in | 3 | Latch Holder | 21 | 0.217 in | 5.51 mm | Female Socket | Free Hanging (In-Line) | Crimp |
TE Connectivity AMP Connectors 1-967625-5 | Receptacle | Contacts Not Included | Yellow | 5 mm | 0.197 in | 3 | Latch Holder | 21 | 0.217 in | 5.51 mm | Female Socket | Free Hanging (In-Line) | Crimp |
TE Connectivity AMP Connectors 1-967625-2 | Receptacle | Contacts Not Included | Gray | 5 mm | 0.197 in | 3 | Latch Holder | 21 | 0.217 in | 5.51 mm | Female Socket | Free Hanging (In-Line) | Crimp |
TE Connectivity AMP Connectors 1-967625-6 | Receptacle | Contacts Not Included | Blue | 5 mm | 0.197 in | 3 | Latch Holder | 21 | 0.217 in | 5.51 mm | Female Socket | Free Hanging (In-Line) | Crimp |
Description
General part information
967625 Series
21 Rectangular Connectors - Housings Receptacle Yellow 0.197" (5.00mm)
