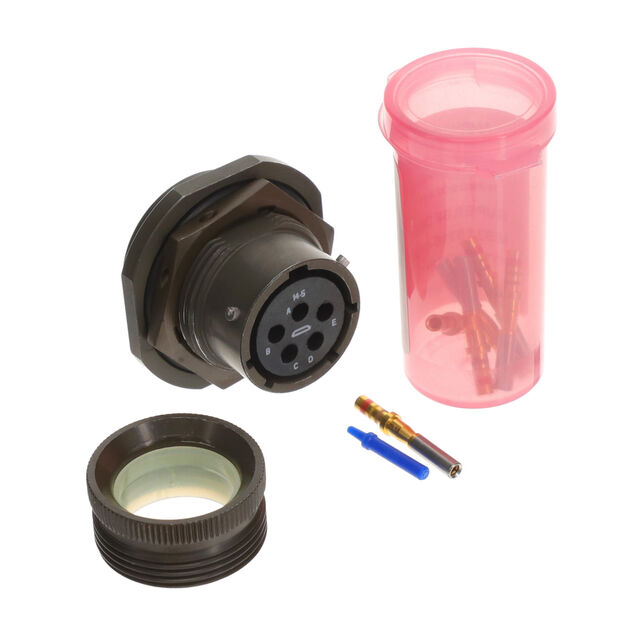

MS3124E14-5S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
MS3124E14-5S
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3124E14-5S | MS3124E14 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Backshell Material, Plating | - | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 13 A | 7.5 - 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | - | Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | - | 12 - 19 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, Y |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 14-5 | 14-12, 14-5 |
| Shell Size - Insert | - | 19 |
| Shell Size - Insert | - | 14 |
| Shell Size - Insert | - | 14 |
| Shell Size - Insert | - | 18 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 1000 VAC | 600 - 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 153.89 | |
| 10 | $ 142.61 | |||
| 25 | $ 137.48 | |||
| 50 | $ 136.45 | |||
MS3124E14 Series
MIL-26482 MS/PT/CMB RECEPT
| Part | Contact Material | Contact Finish - Mating | Connector Type | Shielding | Ingress Protection | Insert Material | Primary Material | Number of Positions | Qualification | Grade | Orientation | Applications | Color | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Shell Finish | Voltage Rating | Fastening Type | Shell Material | Shell Size - Insert | Termination | Mounting Feature | Features | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] | Backshell Material, Plating | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3124E14-12S | Copper Alloy | Gold | Receptacle, Female Sockets | Unshielded | Environment Resistant | Neoprene | Metal | 12 | MIL-DTL-26482 Series I | Military | N | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | -55 °C | 125 °C | 7.5 A, 13 A | Olive Drab Chromate over Cadmium | 600 VAC | Bayonet Lock | Aluminum | 14-12 | Crimp | Bulkhead - Front Side Nut | ||||||
Amphenol Industrial Operations MS3124E14-12P | Copper Alloy | Gold | Male Pins, Receptacle | Unshielded | Environment Resistant | Neoprene | Metal | 12 | MIL-DTL-26482 Series I | Military | N | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | -55 °C | 125 °C | 7.5 A, 13 A | Olive Drab Chromate over Cadmium | 600 VAC | Bayonet Lock | Aluminum | 14-12 | Crimp | Bulkhead - Front Side Nut | ||||||
Amphenol Industrial Operations MS3124E14-15S | |||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E14-5P(LC) | |||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E14-5S | Copper Alloy | Gold | Receptacle, Female Sockets | Unshielded | Environment Resistant | Neoprene | Metal | MIL-DTL-26482 Series I | Military | N | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | -55 °C | 125 °C | 13 A | Olive Drab Chromate over Cadmium | 1000 VAC | Bayonet Lock | Aluminum | 14-5 | Crimp | Bulkhead - Front Side Nut | |||||||
Amphenol Industrial Operations MS3124E14-15P | |||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E14-19S(LC) | |||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E14-19SW | |||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E14-15P(LC) | |||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3124E14-19SY | Copper Alloy | Gold | Receptacle, Female Sockets | Unshielded | Environment Resistant | Neoprene | Metal | 19 | MIL-DTL-26482 Series I | Military | Y | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Olive Drab | -55 °C | 125 °C | Olive Drab Chromate over Cadmium | Bayonet Lock | Aluminum | Crimp | Bulkhead - Front Side Nut | Backshell | 19 | 14 | Aluminum, Olive Drab Chromate over Cadmium |
Description
General part information
MS3124E14 Series
5 Position Circular Connector Receptacle, Female Sockets Crimp
