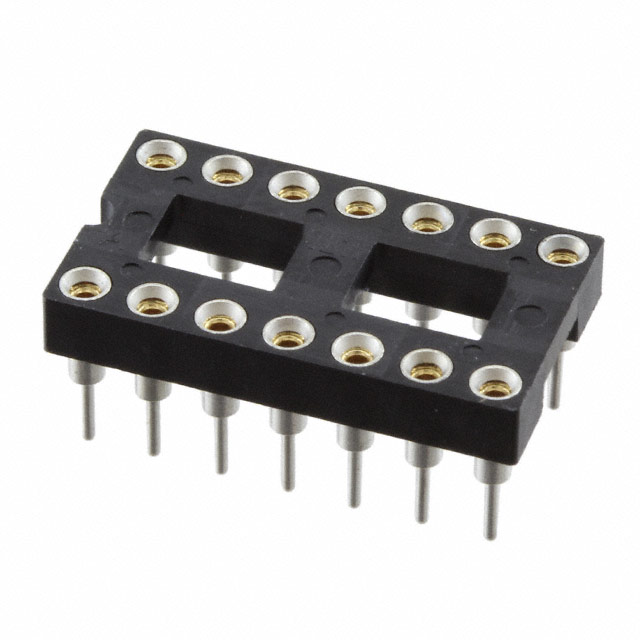

ICA-314-SST

Active

Samtec Inc.

CONN IC DIP SOCKET 14POS GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN IC DIP SOCKET 14POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ICA-314-SST

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	14
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

Part	Termination Post Length	Termination Post Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions or Pins (Grid)	Contact Resistance	Features	Contact Material - Post [custom]	Pitch - Post	Pitch - Post	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Material Flammability Rating	Type	Type	Type	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Mating	Contact Finish - Mating	Current Rating (Amps)	Mounting Type
Samtec Inc. ICA-314-SST	3.18 mm	0.125 in	10 çin	0.25 çm	14	10 mOhm	Open Frame	Brass	2.54 mm	0.1 in	0.1 in	2.54 mm	-55 °C	125 °C	Solder	UL94 V-0	0.3 "	7.62 mm	DIP	Tin	10 çin	0.25 çm	Beryllium Copper	Gold	1 A	Through Hole
