46311LDRX

Active

Switchcraft Inc.

SWITCH SLIDE SP3T 3A 125V

Search across all available documentation for this part.

Active

Switchcraft Inc.

SWITCH SLIDE SP3T 3A 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE SP3T 3A 125V

Part	Termination Style	Actuator Length [x]	Circuit	Contact Timing	Switch Travel [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish	Voltage Rating - AC	Actuator Material	Current Rating (Amps)	Voltage Rating - DC	Switch Function	Actuator Type
Switchcraft Inc. 46311LDRX	Solder Lug	8.74 mm	SP3T	Non-Shorting	6.25 mm	-20 C	70 °C	Copper Alloy	Silver	125 V	Thermoplastic	3 A, 500 mA	125 VDC	On-On-On	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

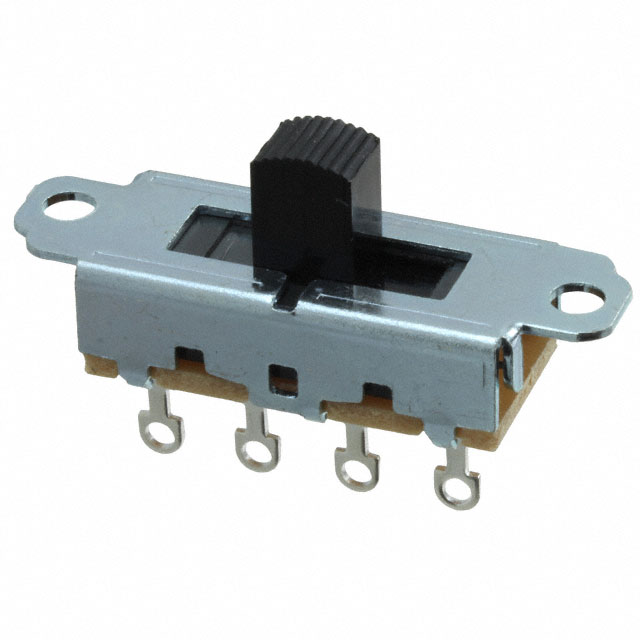

Slide Switch SP3T Panel Mount

Technical documentation and resources

No documents available
