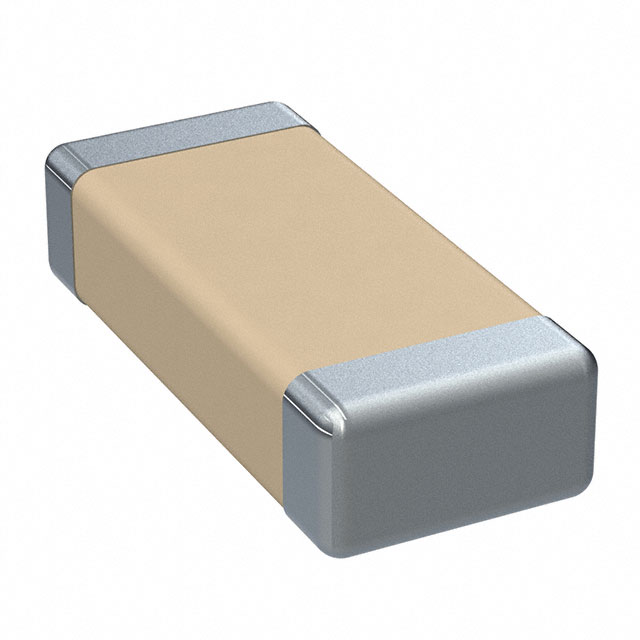

C1206C103J3REC7800

Active

KEMET

CAP CER 1206 10NF 25V X7R 5%

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C1206C103J3REC7800

Active

KEMET

CAP CER 1206 10NF 25V X7R 5%

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C1206C103J3REC7800

Applications	ESD Protection
Capacitance	10000 pF
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Temperature Coefficient	X7R
Thickness (Max) [Max]	0.035 in
Thickness (Max) [Max]	0.88 mm
Tolerance	5 %
Voltage - Rated	25 VDC

C1206C Series

...

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Tolerance	Applications	Capacitance	Voltage - Rated	Temperature Coefficient	Features	Ratings	Mounting Type	Thickness (Max) [Max]	Thickness (Max)	Thickness (Max) [Max]	Voltage - Rated [custom]
KEMET C1206C333KBRACAUTO	0.063 in	1.6 mm	0.126 "	3.2 mm	-55 °C	125 °C	1206 (3216 Metric)	10 %	Automotive Bypass Decoupling	0.033 çF	630 V	X7R	High Voltage Low ESL	AEC-Q200	MLCC Surface Mount	0.075 in	1.9 mm
KEMET C1206C150F8HAC7800	0.063 in	1.6 mm	0.126 "	3.2 mm	-55 °C	150 °C	1206 (3216 Metric)	1 %	General Purpose	15 pF	10 V	X8R	High Temperature Low ESL		MLCC Surface Mount	0.035 in		0.88 mm
KEMET C1206C220J2GAC7800	0.063 in	1.6 mm	0.126 "	3.2 mm	-55 °C	125 °C	1206 (3216 Metric)	5 %	General Purpose	22 pF	200 V	C0G NP0	Low ESL		MLCC Surface Mount	0.035 in		0.88 mm
KEMET C1206C180G1HAC7800	0.063 in	1.6 mm	0.126 "	3.2 mm	-55 °C	150 °C	1206 (3216 Metric)	2 %	General Purpose	18 pF	100 V	X8R	High Temperature Low ESL		MLCC Surface Mount	0.035 in		0.88 mm
KEMET C1206C153MAREC7210	0.063 in	1.6 mm	0.126 "	3.2 mm	-55 °C	125 °C	1206 (3216 Metric)	20 %	ESD Protection	15000 pF	250 V	X7R			MLCC Surface Mount	0.035 in		0.88 mm
KEMET C1206C273K5JACAUTO	0.063 in	1.6 mm	0.126 "	3.2 mm	-55 °C	125 °C	1206 (3216 Metric)	10 %	Automotive	0.027 µF	50 VDC	U2J	Low Dissipation Factor Low ESL	AEC-Q200	MLCC Surface Mount	0.035 in		0.88 mm
KEMET C1206C272J1HAC7800	0.063 in	1.6 mm	0.126 "	3.2 mm	-55 °C	150 °C	1206 (3216 Metric)	5 %	General Purpose	2700 pF	100 V	X8R	High Temperature Low ESL		MLCC Surface Mount	0.039 in		1 mm
KEMET C1206C152M5GECAUTO7210	0.063 in	1.6 mm	0.126 "	3.2 mm	-55 °C	125 °C	1206 (3216 Metric)	20 %	Automotive ESD Protection	1500 pF	50 VDC	C0G NP0	Low ESL Low ESR	AEC-Q200	MLCC Surface Mount	0.039 in		1 mm
KEMET C1206C103J3REC7800	0.063 in	1.6 mm	0.126 "	3.2 mm	-55 °C	125 °C	1206 (3216 Metric)	5 %	ESD Protection	10000 pF	25 VDC	X7R			MLCC Surface Mount	0.035 in		0.88 mm
KEMET C1206C823J4JAC7800	0.063 in	1.6 mm	0.126 "	3.2 mm	-55 °C	125 °C	1206 (3216 Metric)	5 %	General Purpose	0.082 µF		U2J	Low Dissipation Factor Low ESL		MLCC Surface Mount	0.035 in		0.88 mm	16 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	8000	$ 0.03

Description

General part information

C1206C Series

10000 pF ±5% 25V Ceramic Capacitor X7R 1206 (3216 Metric)
