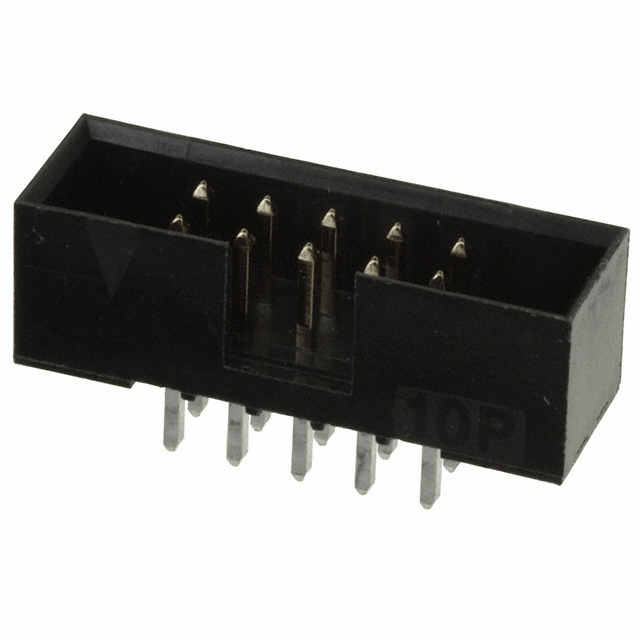

957210-6002-AR - 957210-6002-AR

957210-6002-AR

Active
3M (TC)

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetInterconnect Catalog+1
957210-6002-AR - 957210-6002-AR

957210-6002-AR

Active
3M (TC)

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

DocumentsDatasheetInterconnect Catalog+1

Technical Specifications

Parameters and characteristics for this part

Specification957210-6002-AR
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - MatingFlash
Contact Finish Thickness - Post1 çm
Contact Finish Thickness - Post39.4 çin
Contact Length - Post0.118 in
Contact Length - Post3 mm
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Fastening TypePush-Pull
FeaturesKeying Slot
Insulation ColorBlack
Insulation Height5.6 mm
Insulation Height0.22 in
Insulation MaterialThermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions10
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
ShroudingShrouded - 4 Wall
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 2.06
10$ 1.87
384$ 1.45
NewarkEach 1$ 3.42
10$ 3.12
100$ 2.67
500$ 2.23
1000$ 1.91
5000$ 1.69
10000$ 1.66

Description

General part information

957210 Series

Connector Header Through Hole 10 position 0.079" (2.00mm)
