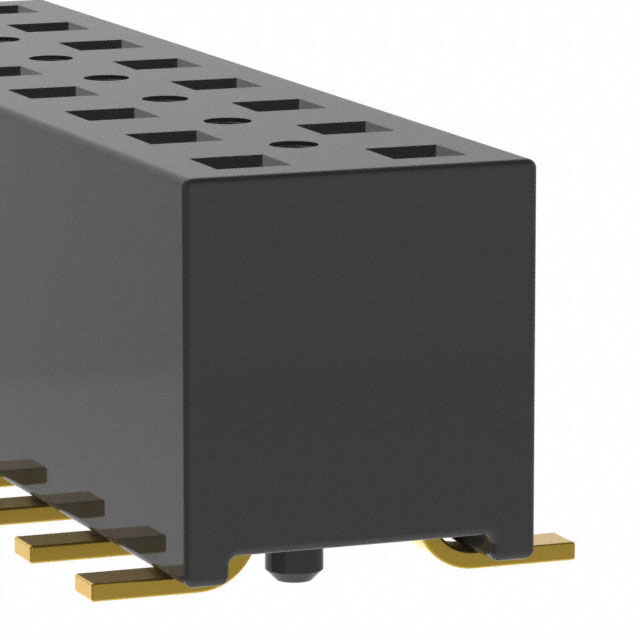

PCB RECEPTACLE, BOARD-TO-BOARD, 2 MM, 2 ROWS, 20 CONTACTS, SURFACE MOUNT, TLE SERIES

Search across all available documentation for this part.

Active

Samtec Inc.

PCB RECEPTACLE, BOARD-TO-BOARD, 2 MM, 2 ROWS, 20 CONTACTS, SURFACE MOUNT, TLE SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	TLE-110-01-G-DV-A-K-TR

Connector Type	Receptacle, Pass Through
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	0.177 in
Insulation Height	4.5 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

Part	Number of Positions Loaded	Contact Finish - Post	Contact Finish - Mating	Contact Shape	Insulation Color	Insulation Material	Current Rating (Amps)	Fastening Type	Termination	Style	Number of Rows	Mounting Type	Contact Material	Features	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Contact Type
Samtec Inc. TLE-110-01-G-DV-P	All	Gold	Gold	Square	Black	Liquid Crystal Polymer (LCP)	3.2 A	Push-Pull	Solder	Board to Board Cable	2	Surface Mount	Phosphor Bronze	Pick and Place	20	10 çin	0.25 çm	0.079 in	2 mm	-55 °C	125 °C	0.177 in	4.5 mm	0.079 in	2 mm	Pass Through Receptacle	Female Socket
Samtec Inc. TLE-110-01-G-DV-A-K-TR	All		Gold	Square	Black	Liquid Crystal Polymer (LCP)	3.2 A	Push-Pull	Solder	Board to Board Cable	2	Surface Mount	Phosphor Bronze	Board Guide Pick and Place	20	10 çin	0.25 çm	0.079 in	2 mm	-55 °C	125 °C	0.177 in	4.5 mm	0.079 in	2 mm	Pass Through Receptacle	Female Socket
Samtec Inc. TLE-110-01-G-DV-A-K	All	Gold	Gold	Square	Black	Liquid Crystal Polymer (LCP)	3.2 A	Push-Pull	Solder	Board to Board Cable	2	Surface Mount	Phosphor Bronze	Board Guide Pick and Place	20	10 çin	0.25 çm	0.079 in	2 mm	-55 °C	125 °C	0.177 in	4.5 mm	0.079 in	2 mm	Pass Through Receptacle	Female Socket
