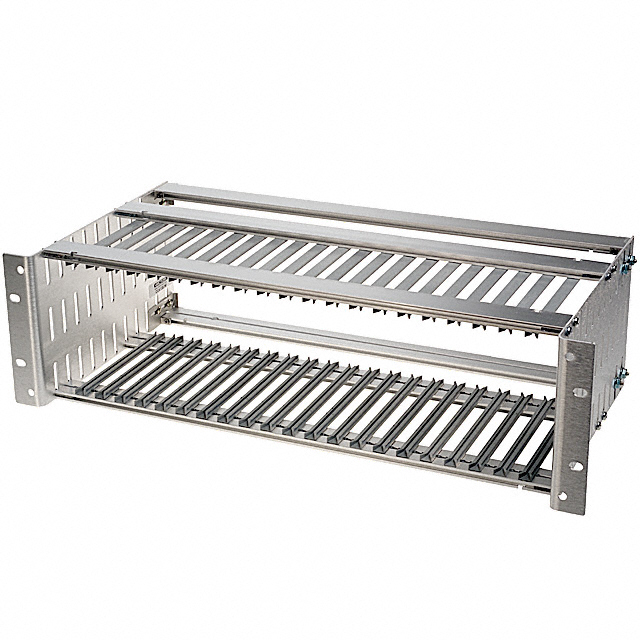

CCA13S/90

Active

Vector Electronics

19" SUBRACK, CARD CAGE KIT ASSEMBLED, VECTORPAK&TRADE;, 3U, 165 MM, 133.4 MM, 483 MM, 6.5 "

Search across all available documentation for this part.

Active

Vector Electronics

19" SUBRACK, CARD CAGE KIT ASSEMBLED, VECTORPAK&TRADE;, 3U, 165 MM, 133.4 MM, 483 MM, 6.5 "

Technical Specifications

Parameters and characteristics for this part

Specification	CCA13S/90

Card Size Range	63.5 mm, 165.1 mm
Card Size Range [Max]	114.3 mm
Card Size Range [Max] [z]	4.5 in
Card Size Range [x]	6.5 in
Card Size Range [z]	2.5 in
Guide Method	Card Guide
Height [z]	133.35 mm
Height [z]	5.25 in
Material	Aluminum
Size / Dimension [x]	228.6 mm
Size / Dimension [x]	9 in
Size / Dimension [y]	482.6 mm
Size / Dimension [y]	19 in
Type	Assembled Subracks with Card Guides

Part	Material	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Guide Method	Card Size Range [z]	Card Size Range	Card Size Range [Max]	Card Size Range [x]	Card Size Range [Max] [z]	Type	Size / Dimension [x]	Size / Dimension [y]
Vector Electronics CCA13S-H/90	Aluminum	133.35 mm	5.25 in	228.6 mm	228.6 mm	10.25 "	260.35 mm	Card Guide	2.5 in	63.5 mm 165.1 mm	114.3 mm	6.5 in	4.5 in	Assembled Subracks with Card Guides
Vector Electronics CCA13S-16/90	Aluminum	133.35 mm	5.25 in	228.6 mm		482.6 mm		Card Guide	2.5 in	63.5 mm 165.1 mm	114.3 mm	6.5 in	4.5 in	Assembled Subracks with Card Guides	9 in	19 in
Vector Electronics CCA13S/90	Aluminum	133.35 mm	5.25 in	228.6 mm		482.6 mm		Card Guide	2.5 in	63.5 mm 165.1 mm	114.3 mm	6.5 in	4.5 in	Assembled Subracks with Card Guides	9 in	19 in
Vector Electronics CCA13S-8/90		133.35 mm	5.25 in	177.8 mm		110.49 mm		Card Guide						Assembled Subracks with Card Guides	7 "	4.35 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Aluminum Assembled Subracks with Card Guides 3U = 5.250" (133.35mm)
