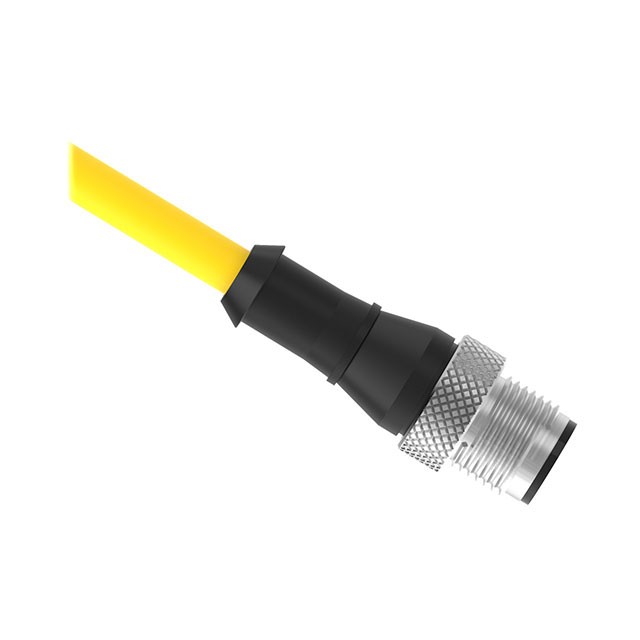

QDE2R4-825D

Active

BANNER ENGINEERING

CORDSET A-CODE M12 SINGLE ENDED

Search across all available documentation for this part.

Active

BANNER ENGINEERING

CORDSET A-CODE M12 SINGLE ENDED

Technical Specifications

Parameters and characteristics for this part

Specification	QDE2R4-825D

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions
1st Connector Number of Positions Loaded	5
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Yellow
Ingress Protection	IP67 - Dust Tight, Waterproof
Length	25 ft
Length	7.62 m
Shielding	Unshielded
Usage	Industrial Environments

Part	Color	Shielding	1st Connector Number of Positions Loaded	Cable Type	Usage	1st Connector Orientation [custom]	Cable Material	Length	Length	1st Connector Type	1st Connector Mounting Type	1st Connector Gender	1st Connector Shell Size - Insert	Ingress Protection	2nd Connector Type	1st Connector Number of Positions	Assembly Configuration
BANNER ENGINEERING QDE2R4-825D	Yellow	Unshielded	5	Round	Industrial Environments	Keyed	Polyvinyl Chloride (PVC)	25 ft	7.62 m	Receptacle	Free Hanging (In-Line)	Male Pins	M12	IP67 - Dust Tight Waterproof	Wire Leads	8 positions	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 57.00
Newark	Each	1	$ 58.00

General part information

Circular Cable Assembly Unshielded 25.0' (7.62m)
