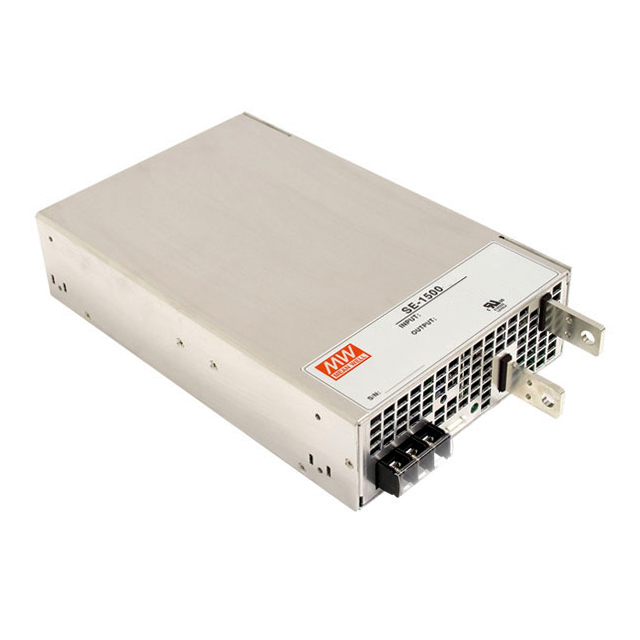

SE-1500-5

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 1500W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 5V 1500W

Technical Specifications

Parameters and characteristics for this part

Specification	SE-1500-5

Applications	ITE (Commercial)
Current - Output 1	300 A
Efficiency	81 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	1500 W
Size / Dimension [x]	10.94 in
Size / Dimension [x]	278 mm
Size / Dimension [y]	7 in
Size / Dimension [y]	177.8 mm
Size / Dimension [z]	63.5 mm
Size / Dimension [z]	2.5 in
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	180 VAC, 254 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

Part	Features	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 1	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Power (Watts)	Voltage - Isolation	Number of Outputs
MEAN WELL USA Inc. SE-1500-24	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	7 in	63.5 mm	10.94 in	2.5 in	177.8 mm	278 mm	24 V	87 %	264 VAC 370 VDC	180 VAC 254 VDC	62.5 A	Enclosed	-20 °C	70 °C	Chassis Mount	1500 W	3000 V	1
MEAN WELL USA Inc. SE-1500-48	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	7 in	63.5 mm	10.94 in	2.5 in	177.8 mm	278 mm	48 V	89 %	264 VAC 370 VDC	180 VAC 254 VDC	31.3 A	Enclosed	-20 °C	70 °C	Chassis Mount	1502 W	3000 V	1
MEAN WELL USA Inc. SE-1500-27	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	7 in	63.5 mm	10.94 in	2.5 in	177.8 mm	278 mm	27 V	88 %	264 VAC 370 VDC	180 VAC 254 VDC	55.6 A	Enclosed	-20 °C	70 °C	Chassis Mount	1501 W	3000 V	1
MEAN WELL USA Inc. SE-1500-5	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	7 in	63.5 mm	10.94 in	2.5 in	177.8 mm	278 mm	5 V	81 %	264 VAC 370 VDC	180 VAC 254 VDC	300 A	Enclosed	-20 °C	70 °C	Chassis Mount	1500 W	3000 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 5V 180 ~ 264 VAC, 254 ~ 370 VDC Input
