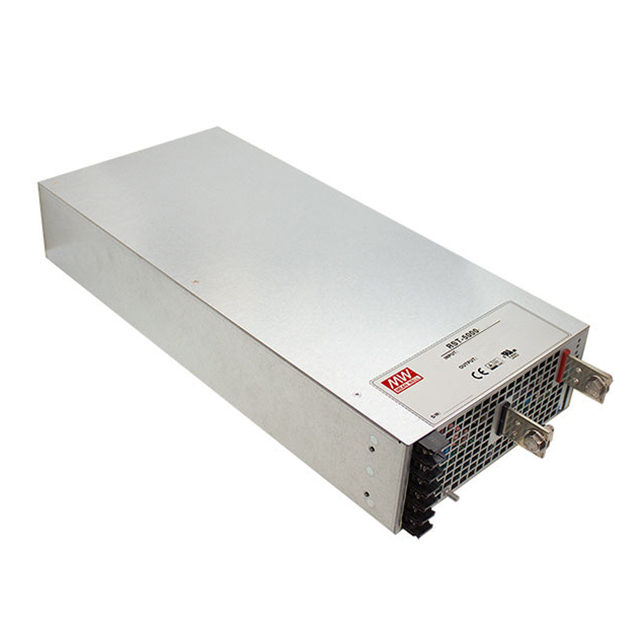

RST-5000-24
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 24V 4800W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RST-5000-24
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 24V 4800W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RST-5000-24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 200 A |
| Efficiency | 89 % |
| Features | Remote Sense, Adjustable Output, PFC, Remote On/Off |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 4800 W |
| Size / Dimension [x] | 18.9 " |
| Size / Dimension [x] | 480 mm |
| Size / Dimension [y] | 8.31 in |
| Size / Dimension [y] | 211 mm |
| Size / Dimension [z] | 3.29 " |
| Size / Dimension [z] | 83.5 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 305 VAC, 530 VAC |
| Voltage - Input [Min] | 196 VAC, 340 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1559.91 | |
| 5 | $ 1486.00 | |||
Description
General part information
RST-5000 Series
Enclosed AC DC Converters 1 Output 24V 196 ~ 305 VAC (3 Phase), 340 ~ 530 VAC (3 Phase) Input
