Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 43.36 | |
| 10 | $ 39.81 | |||
| 25 | $ 38.48 | |||
| 50 | $ 37.50 | |||
| 100 | $ 36.55 | |||
| 250 | $ 35.33 | |||
| 500 | $ 31.35 | |||
General part information

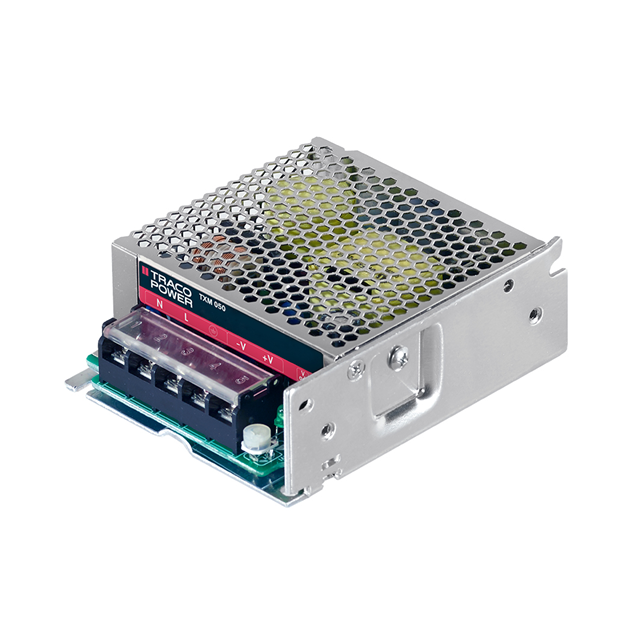

Enclosed AC DC Converters 1 Output 48V 90 ~ 264 VAC, 127 ~ 370 VDC Input
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | TXM 050-148 | TXM 050 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | CE, cURus | CE, cURus |
| Current - Output 1 | 1.1 A | 1.1 - 3.4 A |
| Efficiency | 89 % | 86 - 89 % |
| Features | Adjustable Output, Universal Input | Adjustable Output, Universal Input |
| Minimum Load Required | False | False |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Power (Watts) | 53 W | 51 - 53 W |
| Size / Dimension [x] | 99.1 mm | 99.1 mm |
| Size / Dimension [x] | 3.9 " | 3.9 " |
| Size / Dimension [y] | 3.23 " | 3.23 " |
| Size / Dimension [y] | 82 mm | 82 mm |
| Size / Dimension [z] | 35.1 mm | 35.1 mm |
| Size / Dimension [z] | 1.38 in | 1.38 in |
| Type | Enclosed | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC | 264 - 370 VDC |
| Voltage - Input [Min] | 127 VDC, 90 VAC | 90 - 127 VDC |
| Voltage - Isolation | 3000 V | 3000 V |
| Voltage - Output 1 | 48 V | 15 - 48 V |
AC/DC CONVERTER 15V 51W
| Part | Voltage - Output 1 | Number of Outputs | Power (Watts) | Mounting Type | Current - Output 1 | Applications | Type | Efficiency | Voltage - Isolation | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Minimum Load Required | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Traco Power TXM 050-115 | 15 V | 1 | 51 W | Chassis Mount | 3.4 A | ITE (Commercial) | Enclosed | 86 % | 3000 V | 90 VAC, 127 VDC | 264 VAC, 370 VDC | 35.1 mm | 3.23 " | 1.38 in | 99.1 mm | 82 mm | 3.9 " | -25 °C | 70 °C | CE, cURus | Adjustable Output, Universal Input | |
Traco Power TXM 050-124 | 24 V | 1 | 53 W | Chassis Mount | 2.2 A | ITE (Commercial) | Enclosed | 88 % | 3000 V | 90 VAC, 127 VDC | 264 VAC, 370 VDC | 35.1 mm | 3.23 " | 1.38 in | 99.1 mm | 82 mm | 3.9 " | -25 °C | 70 °C | CE, cURus | Adjustable Output, Universal Input | |
Traco Power TXM 050-148 | 48 V | 1 | 53 W | Chassis Mount | 1.1 A | ITE (Commercial) | Enclosed | 89 % | 3000 V | 90 VAC, 127 VDC | 264 VAC, 370 VDC | 35.1 mm | 3.23 " | 1.38 in | 99.1 mm | 82 mm | 3.9 " | -25 °C | 70 °C | CE, cURus | Adjustable Output, Universal Input |
