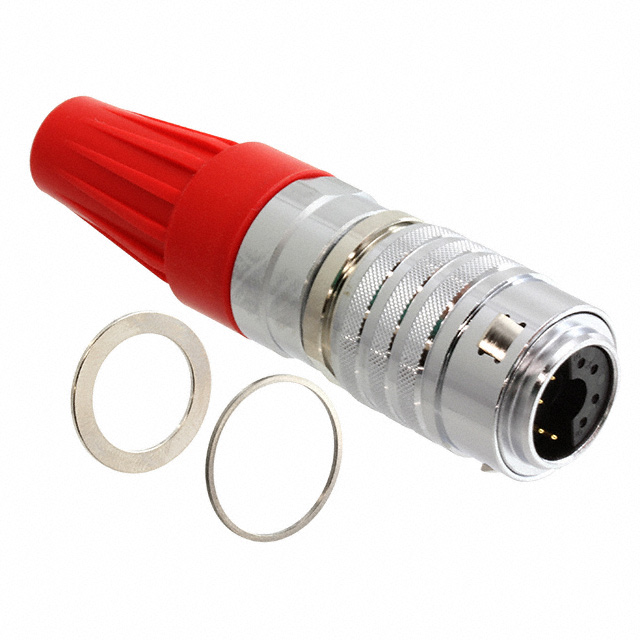

JB5DX08YL3130

Obsolete

JAE Electronics

CONN CIRC PLUG 8POS SOLDER CUP

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN CIRC PLUG 8POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JB5DX08YL3130

Applications	Telecommunications, Medical, Test & Measurement
Connector Type	Male Pins, Plug, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Strain Relief
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	X
Shielding	Shielded

Part	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Fastening Type	Connector Type	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Finish - Mating	Number of Positions	Shell Finish	Orientation	Shielding	Applications	Shell Material	Features	Mounting Type	Ingress Protection
JAE Electronics JB5DX08YL3130	85 °C	-55 °C	Metal	Push-Pull	Female Sockets Male Pins Plug	X	30 Áin	0.76 Ám	2 A	Gold	8	Nickel	Keyed	Shielded	Medical Telecommunications Test & Measurement	Zinc Alloy	Strain Relief	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Position Circular Connector Plug, Female Sockets and Male Pins Solder Cup
