346-015-526-658
ActiveEDAC Inc.

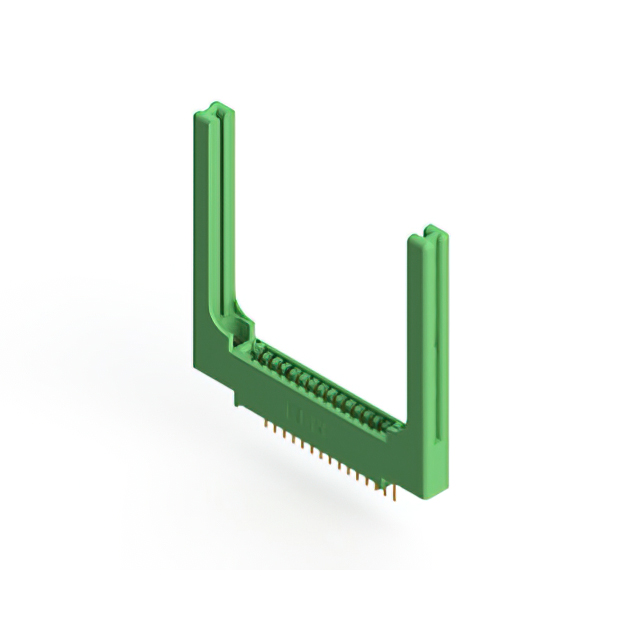

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 15 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
346-015-526-658
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 15 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-015-526-658 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
346-015 Series
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Features | Flange Feature | Pitch [x] | Pitch [x] | Card Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Read Out | Number of Positions | Termination Rows | Termination | Material - Insulation | Number of Positions/Bay/Row [custom] | Gender | Contact Material | Contact Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Card Guides | 4-40 Threaded Insert Top Mount Opening | 0.125 in | 3.18 mm | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Gold | Single | 15 | 1 | Solder | Polyester Thermoplastic | 15 | Female | Copper Alloy | Cantilever | Through Hole | -40 °C | 105 ░C | 1 | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 4-40 Threaded Insert Top Mount Opening | 0.125 in | 3.18 mm | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Gold | Single | 15 | 1 | Solder | Polyester Thermoplastic | 15 | Female | Copper Alloy | Cantilever | Through Hole | -40 °C | 105 ░C | 1 | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Card Guides | 4-40 Threaded Insert Top Mount Opening | 0.125 in | 3.18 mm | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Gold | Single | 15 | 1 | Solder | Polyester Thermoplastic | 15 | Female | Copper Alloy | Cantilever | Through Hole | -40 °C | 105 ░C | 1 | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 0.125 in | 3.18 mm | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Gold | Single | 15 | 1 | Solder | Polyester Thermoplastic | 15 | Female | Copper Alloy | Cantilever | Through Hole | -40 °C | 105 ░C | 1 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Flush Mount Top Opening Unthreaded | 0.125 in | 3.18 mm | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Gold | Single | 15 | 1 | Solder | Polyester Thermoplastic | 15 | Female | Copper Alloy | Cantilever | Through Hole | -40 °C | 105 ░C | 1 | 3.96 mm | 0.156 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | 0.125 in | 3.18 mm | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Gold | Single | 15 | 1 | Wire Wrap | Polyester Thermoplastic | 15 | Female | Copper Alloy | Cantilever | Through Hole | -40 °C | 105 ░C | 1 | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Card Guides | 4-40 Threaded Insert Top Mount Opening | 0.125 in | 3.18 mm | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Gold | Single | 15 | 1 | Solder | Polyester Thermoplastic | 15 | Female | Copper Alloy | Cantilever | Through Hole | -40 °C | 105 ░C | 1 | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Flush Mount Top Opening Unthreaded | 0.125 in | 3.18 mm | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Gold | Single | 15 | 1 | Solder Wire Wrap | Polyester Thermoplastic | 15 | Female | Copper Alloy | Cantilever | Through Hole Right Angle | -40 °C | 105 ░C | 1 | 3.25 mm | 0.128 " | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Floating Bobbin Flush Mount | 0.125 in | 3.18 mm | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Gold | Single | 15 | 1 | Solder | Polyester Thermoplastic | 15 | Female | Copper Alloy | Cantilever | Through Hole | -40 °C | 105 ░C | 1 | 2.95 mm | 0.116 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Floating Bobbin Top Mount Opening | 0.125 in | 3.18 mm | Non Specified - Single Edge | 10 Áin | 0.25 Ám | Gold | Single | 15 | 1 | Solder | Polyester Thermoplastic | 15 | Female | Copper Alloy | Cantilever | Through Hole | -40 °C | 105 ░C | 1 | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-015 Series
15 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
