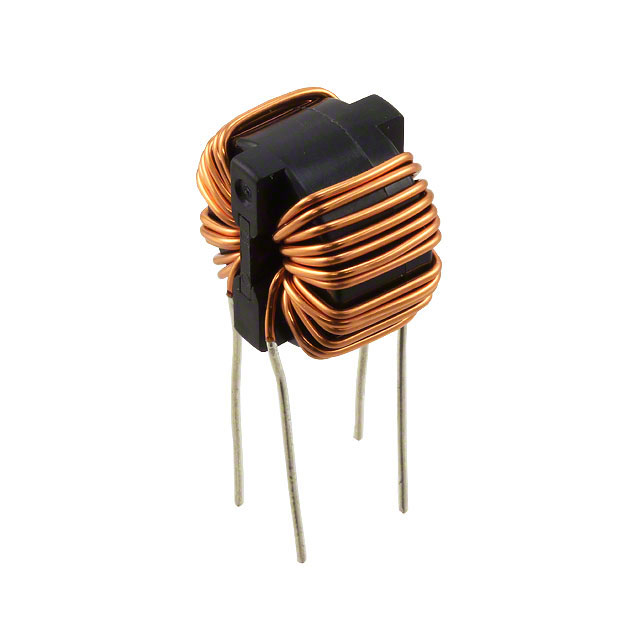

SCF-05-350 - SCF-05-350

SCF-05-350

Active
KEMET

COMMON MODE CHOKES DUAL 3500UH 10KHZ 5A 0.035OHM DCR THRU-HOLE TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_LF0012_SCF.pdfSCF-05-350+3
SCF-05-350 - SCF-05-350

SCF-05-350

Active
KEMET

COMMON MODE CHOKES DUAL 3500UH 10KHZ 5A 0.035OHM DCR THRU-HOLE TRAY

Deep-Dive with AI

DocumentsKEM_LF0012_SCF.pdfSCF-05-350+3

Technical Specifications

Parameters and characteristics for this part

SpecificationSCF-05-350
Current Rating (Max) [Max]5 A
DC Resistance (DCR) (Max) [Max]35 mOhm
Filter TypePower Line
Height (Max) [Max] [z]16 mm
Height (Max) [Max] [z]0.63 in
Inductance @ Frequency3.5 mH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]120 °C
Operating Temperature [Min]-40 °C
Package / CaseNo Base, Vertical, 4 PC Pin
Size / Dimension [x]0.63 "
Size / Dimension [x]16 mm
Size / Dimension [y]0.472 "
Size / Dimension [y]12 mm
Voltage Rating - AC250 V
Voltage Rating - DC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 6.10
DigikeyTray 1$ 6.75
10$ 5.13
25$ 4.99
40$ 4.59
100$ 4.32
300$ 4.18
500$ 4.05
1000$ 3.91
NewarkEach 1$ 5.37
10$ 4.39
25$ 4.30
50$ 4.20
100$ 4.11
250$ 3.98
500$ 3.95

Description

General part information

SCF-05 Series

3.5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 5A DCR 35mOhm
