8B3021-Z

Obsolete

Nidec Components Corporation

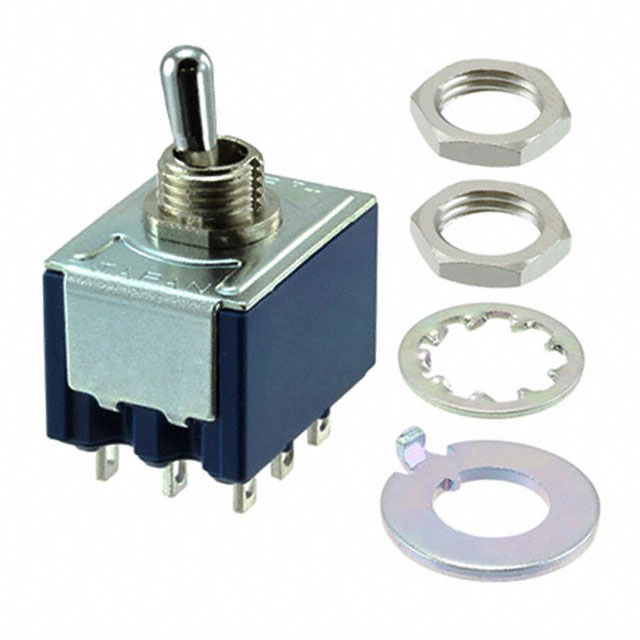

SWITCH TOGGLE 3PDT 6A 125V

Search across all available documentation for this part.

Obsolete

Nidec Components Corporation

SWITCH TOGGLE 3PDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	8B3021-Z

Actuator Length [x]	11.5 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	3PDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	50000 Cycles
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Off-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

SWITCH TOGGLE 3PDT 6A 125V

Part	Voltage Rating - DC	Actuator Length [x]	Circuit	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Features	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Switch Function	Actuator Type	Electrical Life	Illumination	Termination Style	Bushing Thread
Nidec Components Corporation 8B3021-Z	30 V	11.5 mm	3PDT	12.5 mm	125 V	Sealed - Flux Protection	85 °C	-20 C	4 A, 6 A	On-Off-On	Standard Round	50000 Cycles	Non-Illuminated	Solder Lug	15/32-32

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch 3PDT Panel Mount
