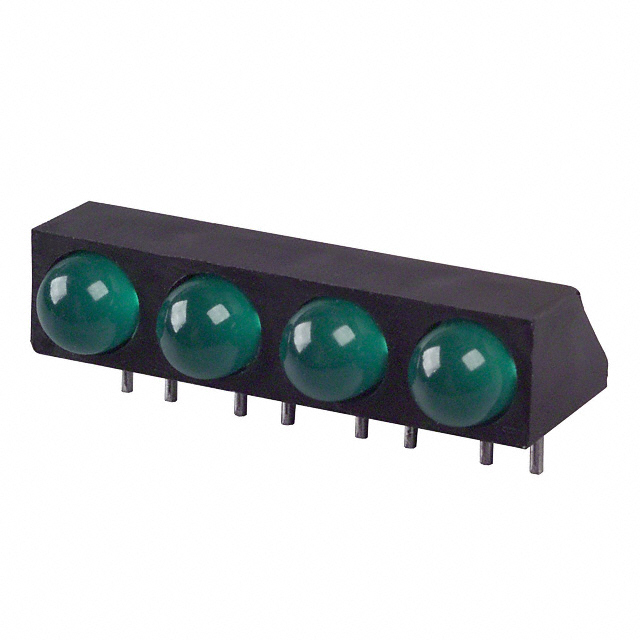

SSF-LXH400GD-5V

Active

Lumex Opto/Components Inc.

LED CBI 5MM QUAD GRN RA

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH400GD-5V

Active

Lumex Opto/Components Inc.

LED CBI 5MM QUAD GRN RA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH400GD-5V	SSF-LXH400 Series

Color	Green (x 4)	Red (x 4), Yellow (x 4), Green (x 4), Green, Red
Configuration	4 Wide	4 Wide
Current	12 mA	12 mA
Lens Size	T-1 3/4	T-1 3/4
Lens Size	5 mm	5 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Tinted, Diffused	Tinted, Diffused, White
Millicandela Rating	20 mcd	20 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	60 °	60 °
Voltage Rating	5 V	1.7 - 5 V
Wavelength - Peak	565 nm	565 - 660 nm

SSF-LXH400 Series

LED CBI 5MM QUAD RED RA PC MNT

Part	Voltage Rating	Lens Type	Mounting Type	Lens Style	Color	Configuration	Lens Size	Lens Size	Wavelength - Peak	Millicandela Rating	Viewing Angle	Current
Lumex Opto/Components Inc. SSF-LXH400ID	2 V	Diffused, Tinted	Through Hole, Right Angle	Round with Domed Top	Red (x 4)	4 Wide	T-1 3/4	5 mm
Lumex Opto/Components Inc. SSF-LXH400YD	2.1 V	Diffused, Tinted	Through Hole, Right Angle	Round with Domed Top	Yellow (x 4)	4 Wide	T-1 3/4	5 mm	585 nm
Lumex Opto/Components Inc. SSF-LXH400GD-5V	5 V	Diffused, Tinted	Through Hole, Right Angle	Round with Domed Top	Green (x 4)	4 Wide	T-1 3/4	5 mm	565 nm	20 mcd	60 °	12 mA
Lumex Opto/Components Inc. SSF-LXH400SRD	1.7 V	Diffused, Tinted	Through Hole, Right Angle	Round with Domed Top	Red (x 4)	4 Wide	T-1 3/4	5 mm	660 nm
Lumex Opto/Components Inc. SSF-LXH400GD-01	2.1 V	Diffused, Tinted	Through Hole, Right Angle	Round with Domed Top	Green (x 4)	4 Wide	T-1 3/4	5 mm	565 nm	20 mcd	60 °
Lumex Opto/Components Inc. SSF-LXH400ID-5V	5 V	Diffused, Tinted	Through Hole, Right Angle	Round with Domed Top	Red (x 4)	4 Wide	T-1 3/4	5 mm	635 nm			12 mA
Lumex Opto/Components Inc. SSF-LXH400HGW	2.1 V	Diffused, White	Through Hole, Right Angle	Round with Domed Top	Green, Red	4 Wide	T-1 3/4	5 mm
Lumex Opto/Components Inc. SSF-LXH400GD	2.1 V	Diffused, Tinted	Through Hole, Right Angle	Round with Domed Top	Green (x 4)	4 Wide	T-1 3/4	5 mm	565 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSF-LXH400 Series

LED Circuit Board Indicator LED Circuit Board Indicator 4 Wide Green (x 4) Diffused, Tinted 5V 12mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
