SSF-LXH400HGW

Active

Lumex Opto/Components Inc.

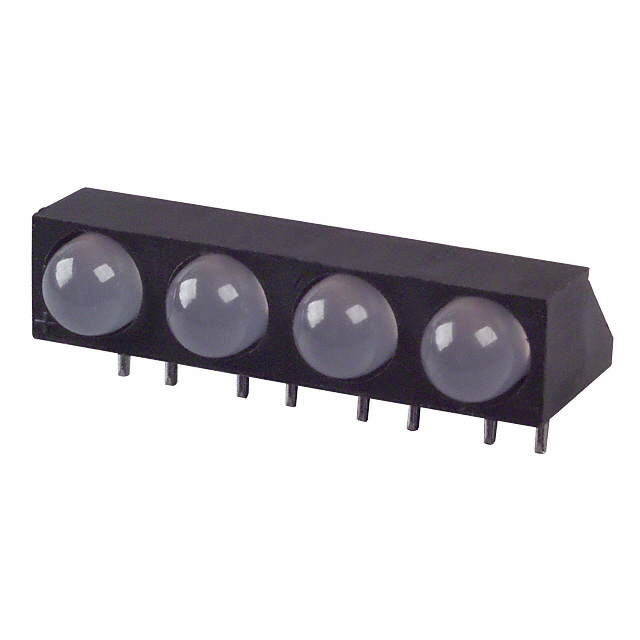

LED CBI 5MM QUAD GRN/RED RA

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH400HGW

Active

Lumex Opto/Components Inc.

LED CBI 5MM QUAD GRN/RED RA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.19
		19	$ 2.62
		114	$ 2.14
		513	$ 1.90
		1007	$ 1.81
		2014	$ 1.75
		5016	$ 1.68

Description

General part information

SSF-LXH400 Series

LED Circuit Board Indicator LED Circuit Board Indicator 4 Wide Green, Red (x 4) Diffused, White 2.1V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH400HGW	SSF-LXH400 Series

Color	Green, Red	Red (x 4), Yellow (x 4), Green (x 4), Green, Red
Configuration	4 Wide	4 Wide
Current	-	12 mA
Lens Size	T-1 3/4	T-1 3/4
Lens Size	5 mm	5 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Diffused, White	Tinted, Diffused, White
Millicandela Rating	-	20 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	-	60 °
Voltage Rating	2.1 V	1.7 - 5 V
Wavelength - Peak	-	565 - 660 nm

SSF-LXH400 Series

LED CBI 5MM QUAD RED RA PC MNT

Part	Voltage Rating	Lens Type	Mounting Type	Lens Style	Color	Configuration	Lens Size	Lens Size	Wavelength - Peak	Millicandela Rating	Viewing Angle	Current
Lumex Opto/Components Inc. SSF-LXH400ID	2 V	Diffused, Tinted	Through Hole, Right Angle	Round with Domed Top	Red (x 4)	4 Wide	T-1 3/4	5 mm
Lumex Opto/Components Inc. SSF-LXH400YD	2.1 V	Diffused, Tinted	Through Hole, Right Angle	Round with Domed Top	Yellow (x 4)	4 Wide	T-1 3/4	5 mm	585 nm
Lumex Opto/Components Inc. SSF-LXH400GD-5V	5 V	Diffused, Tinted	Through Hole, Right Angle	Round with Domed Top	Green (x 4)	4 Wide	T-1 3/4	5 mm	565 nm	20 mcd	60 °	12 mA
Lumex Opto/Components Inc. SSF-LXH400SRD	1.7 V	Diffused, Tinted	Through Hole, Right Angle	Round with Domed Top	Red (x 4)	4 Wide	T-1 3/4	5 mm	660 nm
Lumex Opto/Components Inc. SSF-LXH400GD-01	2.1 V	Diffused, Tinted	Through Hole, Right Angle	Round with Domed Top	Green (x 4)	4 Wide	T-1 3/4	5 mm	565 nm	20 mcd	60 °
Lumex Opto/Components Inc. SSF-LXH400ID-5V	5 V	Diffused, Tinted	Through Hole, Right Angle	Round with Domed Top	Red (x 4)	4 Wide	T-1 3/4	5 mm	635 nm			12 mA
Lumex Opto/Components Inc. SSF-LXH400HGW	2.1 V	Diffused, White	Through Hole, Right Angle	Round with Domed Top	Green, Red	4 Wide	T-1 3/4	5 mm
Lumex Opto/Components Inc. SSF-LXH400GD	2.1 V	Diffused, Tinted	Through Hole, Right Angle	Round with Domed Top	Green (x 4)	4 Wide	T-1 3/4	5 mm	565 nm
