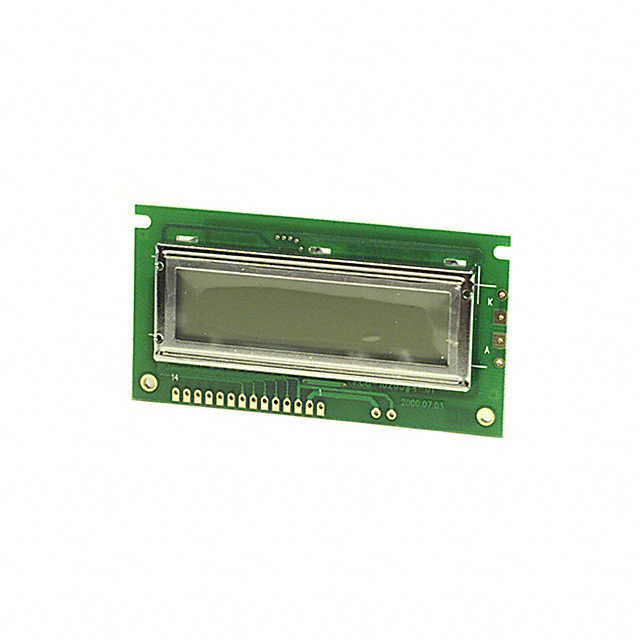

MDL-24265-LV

Obsolete

Varitronix

LCD MOD 48 DIG 24 X 2 REFLECTIVE

Search across all available documentation for this part.

Obsolete

Varitronix

LCD MOD 48 DIG 24 X 2 REFLECTIVE

Technical Specifications

Parameters and characteristics for this part

LCD MOD 48 DIG 24 X 2 REFLECTIVE

Part	Character Size [y]	Character Size [z]	Dot Size [y]	Dot Size [x]	Operating Temperature [Max]	Operating Temperature [Min]	Display Type	Display Mode	Backlight	Interface	Character Format [y]	Character Format [x]	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Display Format [y]	Display Format [x]	Viewing Area [x]	Viewing Area [y]	Background Color	Text Color	Number of Characters
Varitronix MDL-24265-LV	3.15 mm	5.15 mm	0.6 mm	0.6 mm	50 °C	-5 °C	TN - Twisted Nematic	Reflective	Without Backlight	Parallel	8 Dots	5 Dots	118 mm	6.6 mm	36 mm	2	24	93.5 mm	15.8 mm	Green	Black	48

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Character Display Module Reflective 5 x 8 Dots TN - Twisted Nematic Without Backlight Parallel 118.00mm x 36.00mm x 6.60mm
