3155-0-00-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.

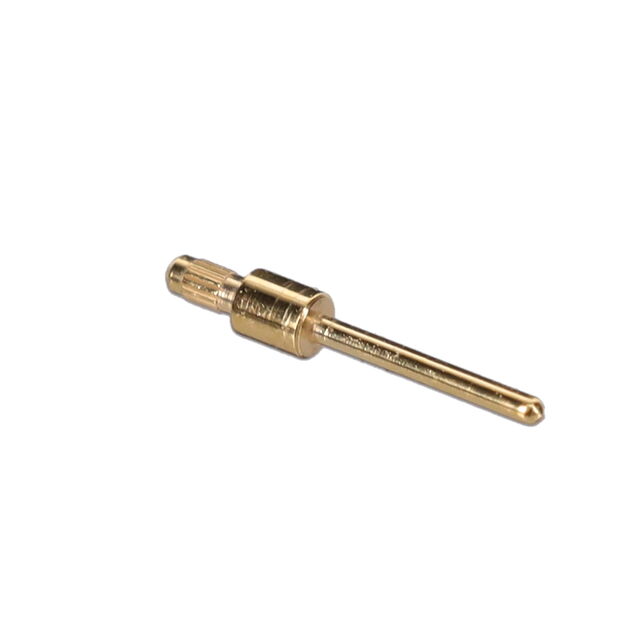

CONN PC PIN CIRC .018DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
3155-0-00-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC .018DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3155-0-00-21-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Phosphor Bronze |
| Flange Diameter [diameter] | 0.045 in |
| Flange Diameter [diameter] | 1.14 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [custom] | 4.57 mm |
| Length - Above Flange [custom] | 0.18 in |
| Length - Below Flange [x] | 1.52 mm |
| Length - Below Flange [x] | 0.06 in |
| Length - Overall | 7.37 mm |
| Length - Overall | 0.29 in |
| Mounting Hole Diameter | 0.66 mm |
| Mounting Hole Diameter | 0.026 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.46 mm |
| Pin Size - Above Flange [diameter] | 0.018 in |
| Pin Size - Below Flange [diameter] | 0.64 mm |
| Pin Size - Below Flange [diameter] | 0.025 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Knurled, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.22 | |
| 10 | $ 0.93 | |||
| 25 | $ 0.84 | |||
| 50 | $ 0.77 | |||
| 100 | $ 0.71 | |||
| 250 | $ 0.64 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.56 | |||
| 3000 | $ 0.50 | |||
Description
General part information
3155-0 Series
PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia
Documents
Technical documentation and resources
No documents available
