EHDB9MFB

Active

Switchcraft Inc.

CONN DSUB ADAPTER DB9F DB9M

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN DSUB ADAPTER DB9F DB9M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

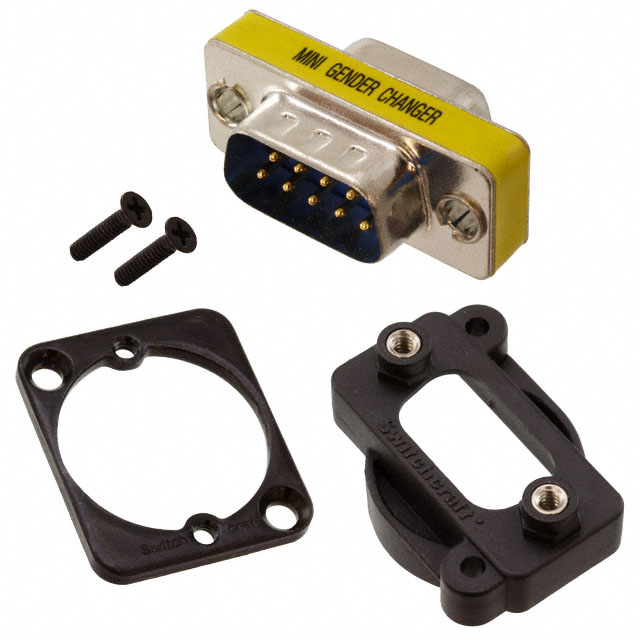

Adapter Connector D-Sub, 9 Pin Female To D-Sub, 9 Pin Male Panel Mount, Square Flange

Technical documentation and resources

Specification	EHDB9MFB	EHDB9M Series

Connector Style	Connector Saver	Connector Saver, Gender Changer
Contact Finish	Gold	Gold
Convert From (Adapter End)	D-Sub, 9 Pin Male	D-Sub, 9 Pin Male
Convert To (Adapter End)	-	D-Sub, 9 Pin Male
Housing Color	Yellow	Yellow
Includes	2 Screws, 1 Connector, 1 Flange, 1 Housing	2 Screws, 1 Connector, 1 Flange, 1 Housing
Mounting Type	Panel Mount, Square Flange	Panel Mount, Square Flange
Number of Rows	2	2
Shell Material, Finish	Nickel Silver, Black Chrome Plated	Nickel Silver, Black Chrome Plated, Tin Plated

Part	Convert From (Adapter End)	Includes	Housing Color	Connector Style	Mounting Type	Number of Rows	Shell Material, Finish	Contact Finish	Convert To (Adapter End)
Switchcraft Inc. EHDB9MFB	D-Sub, 9 Pin Male	1 Connector, 1 Flange, 1 Housing, 2 Screws	Yellow	Connector Saver	Panel Mount, Square Flange	2	Black Chrome Plated, Nickel Silver	Gold
Switchcraft Inc. EHDB9MF	D-Sub, 9 Pin Male	1 Connector, 1 Flange, 1 Housing, 2 Screws	Yellow	Connector Saver	Panel Mount, Square Flange	2	Nickel Silver, Tin Plated	Gold
Switchcraft Inc. EHDB9MM	D-Sub, 9 Pin Male	1 Connector, 1 Flange, 1 Housing, 2 Screws	Yellow	Gender Changer	Panel Mount, Square Flange	2	Nickel Silver, Tin Plated	Gold	9 Pin Male, D-Sub
Switchcraft Inc. EHDB9MMB	D-Sub, 9 Pin Male	1 Connector, 1 Flange, 1 Housing, 2 Screws	Yellow	Gender Changer	Panel Mount, Square Flange	2	Black Chrome Plated, Nickel Silver	Gold	9 Pin Male, D-Sub
