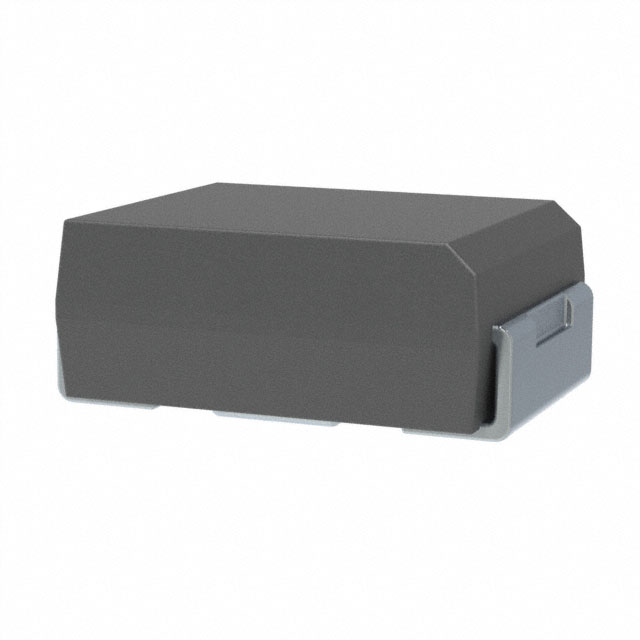

T520M157M006ATE200

Active

KEMET

CAP, 150ΜF, 6.3V, 20% ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

CAP, 150ΜF, 6.3V, 20% ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	T520M157M006ATE200

Capacitance	150 µF
ESR (Equivalent Series Resistance)	200 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	M
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	1411
Package / Case	3528 Metric
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	6.3 V

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Type	Voltage - Rated	Features	Tolerance	Package / Case	Package / Case	ESR (Equivalent Series Resistance)	Manufacturer Size Code	Lifetime @ Temp.
KEMET T520M157M006ATE035	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	105 ░C	-55 °C	150 µF	1.5 mm	0.059 "	Molded	6.3 V	General Purpose	20 %	1411	3528 Metric	35 mOhm	M	2000 Hrs
KEMET T520M157M006ATE070	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	105 ░C	-55 °C	150 µF	1.5 mm	0.059 "	Molded	6.3 V	General Purpose	20 %	1411	3528 Metric	70 mOhm	M	2000 Hrs
KEMET T520M157M006ATE200	Surface Mount	0.11 in	2.8 mm	0.138 "	3.5 mm	105 ░C	-55 °C	150 µF	1.5 mm	0.059 "	Molded	6.3 V	General Purpose	20 %	1411	3528 Metric	200 mOhm	M	2000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

150 µF Molded Tantalum Polymer Capacitor 6.3 V 1411 (3528 Metric) 200mOhm @ 100kHz
