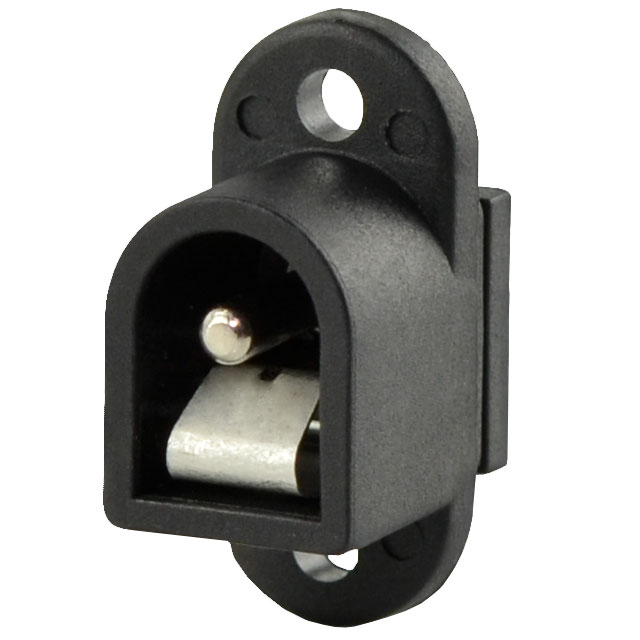

PJ-010A

Active

CUI Devices

CONN DC POWER JACK F 2 POS SOLDER POT ST THRU-HOLE 3 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

CUI Devices

CONN DC POWER JACK F 2 POS SOLDER POT ST THRU-HOLE 3 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-010A

Actual Diameter [diameter]	0.252 ", 0.079 in
Actual Diameter [diameter]	2 mm, 6.4 mm
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	2.5 A
Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Industry Recognized Mating Diameter [diameter]	0.083 in, 0.217 "
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.1 mm
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth	0.303 "
Mating Length/Depth	7.7 mm
Mounting Feature	Flange
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder Eyelet(s)
Voltage - Rated	24 VDC

Part	Voltage - Rated	Material Flammability Rating	Number of Positions/Contacts	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Mounting Feature	Shielding	Body Color	Operating Temperature [Min]	Operating Temperature [Max]	Mating Length/Depth	Mating Length/Depth	Actual Diameter [diameter]	Actual Diameter [diameter]	Contact Material - Plating [custom]	Housing Material	Contact Material	Internal Switch(s)	Gender	Termination	Connector Type	Current Rating (Amps)
CUI Devices PJ-010A	24 VDC	UL94 V-0	2 Conductors 3 Conductors	0.083 in 0.217 "	2.1 mm 5.5 mm	Flange	Unshielded	Black	-25 °C	85 °C	0.303 "	7.7 mm	0.079 in 0.252 "	2 mm 6.4 mm	Silver	Polybutylene Terephthalate (PBT)	Brass Copper Alloy	Normally Closed Single Switch	Male	Solder Eyelet(s)	Jack	2.5 A
CUI Devices PJ-010AH	24 VDC	UL94 V-0	2 Conductors 3 Conductors	0.083 in 0.217 "	2.1 mm 5.5 mm	Flange	Unshielded	Black	-25 °C	85 °C	0.303 "	7.7 mm	0.079 in 0.252 "	2 mm 6.4 mm	Silver	Polybutylene Terephthalate (PBT)	Brass Copper Alloy	Normally Closed Single Switch	Male	Solder Eyelet(s)	Jack	5 A
CUI Devices PJ-010A	24 VDC	UL94 V-0	2 Conductors 3 Conductors	0.083 in 0.217 "	2.1 mm 5.5 mm	Flange	Unshielded	Black	-25 °C	85 °C	0.303 "	7.7 mm	0.079 in 0.252 "	2 mm 6.4 mm	Silver	Polybutylene Terephthalate (PBT)	Brass Copper Alloy	Normally Closed Single Switch	Male	Solder Eyelet(s)	Jack	2.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Panel Mount
