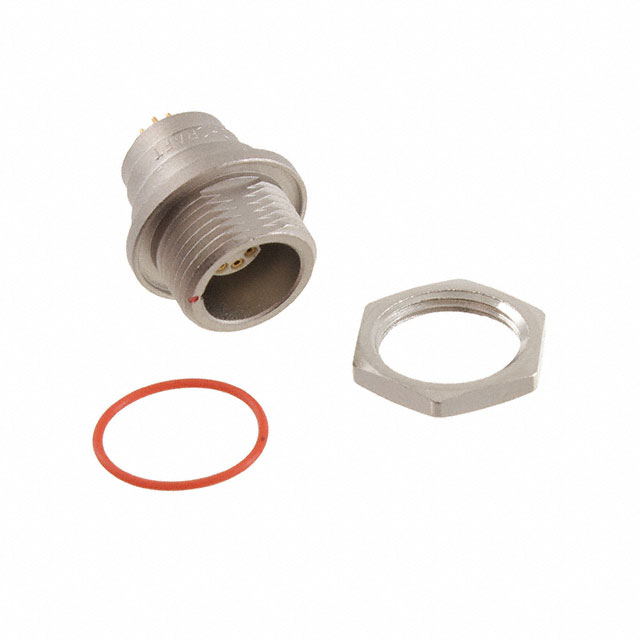

HS2P9F26-BPE
ActiveSwitchcraft Inc.
CONN RCPT FMALE 9POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HS2P9F26-BPE
ActiveSwitchcraft Inc.
CONN RCPT FMALE 9POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HS2P9F26-BPE | HS2P9F Series |
|---|---|---|
| Applications | Audio, Testing Equipment & Measurement, Agriculture, Medical, General | Audio, Testing Equipment & Measurement, Agriculture, Medical, General |
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | - | UL94 HF-1 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 9 | 9 |
| Operating Temperature [Max] | 135 °C | 135 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Electroless Nickel | Electroless Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shielding | Shielded | Shielded |
| Termination | Solder | Crimp, Solder Cup, Solder |
| Voltage Rating | 30 VAC | 30 VAC |
HS2P9F Series
CONN RCPT FMALE 9POS GOLD CRIMP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Fastening Type | Insert Material | Shell Finish | Shell Material | Applications | Orientation | Voltage Rating | Shielding | Number of Positions | Primary Material | Contact Finish - Mating | Ingress Protection | Mounting Feature | Color | Contact Material | Connector Type | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. HS2P9F26 | 135 °C | -40 °C | UL94 HF-1 | Push-Pull | Liquid Crystal Polymer (LCP) | Electroless Nickel | Copper Alloy | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | Keyed | 30 VAC | Shielded | 9 | Metal | Gold | IP66, IP67, IP68 | Bulkhead - Rear Side Nut | Silver | Copper Alloy | Receptacle, Female Sockets | Crimp, Solder Cup | |
Switchcraft Inc. HS2P9F26-BP | 135 °C | -40 °C | Push-Pull | Liquid Crystal Polymer (LCP) | Electroless Nickel | Copper Alloy | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | Keyed | 30 VAC | Shielded | 9 | Metal | Gold | IP66, IP67, IP68 | Bulkhead - Front Side Nut | Silver | Copper Alloy | Receptacle, Female Sockets | Solder | Panel Mount, Through Hole | |
Switchcraft Inc. HS2P9F26-BPE | 135 °C | -40 °C | Push-Pull | Liquid Crystal Polymer (LCP) | Electroless Nickel | Copper Alloy | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | Keyed | 30 VAC | Shielded | 9 | Metal | Gold | IP66, IP67, IP68 | Bulkhead - Front Side Nut | Silver | Copper Alloy | Receptacle, Female Sockets | Solder | Panel Mount, Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.04 | |
| 10 | $ 31.56 | |||
| 25 | $ 30.20 | |||
| 50 | $ 29.22 | |||
| 100 | $ 28.25 | |||
| 250 | $ 26.69 | |||
Description
General part information
HS2P9F Series
9 Position Circular Connector Receptacle, Female Sockets Solder
