HS2P9F26

Active

Switchcraft Inc.

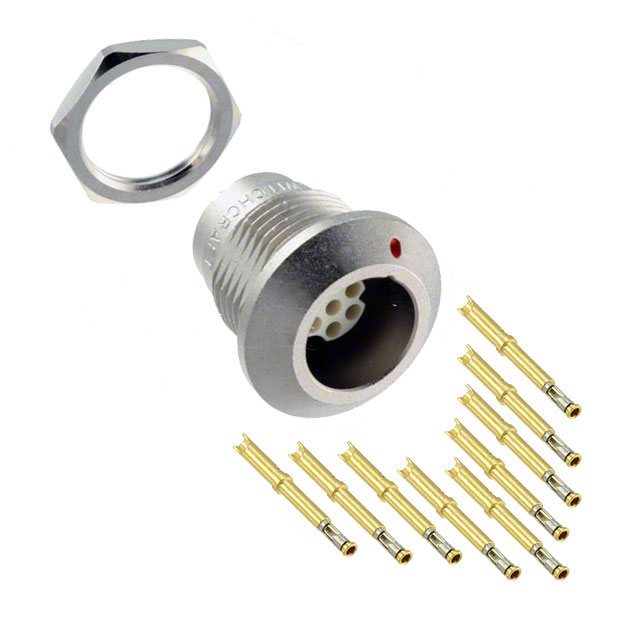

CONN RCPT FMALE 9POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 9POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HS2P9F26	HS2P9F Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 HF-1	UL94 HF-1
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	9	9
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Crimp, Solder Cup	Crimp, Solder Cup, Solder
Voltage Rating	30 VAC	30 VAC

CONN RCPT FMALE 9POS GOLD CRIMP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Fastening Type	Insert Material	Shell Finish	Shell Material	Applications	Orientation	Voltage Rating	Shielding	Number of Positions	Primary Material	Contact Finish - Mating	Ingress Protection	Mounting Feature	Color	Contact Material	Connector Type	Termination	Mounting Type
Switchcraft Inc. HS2P9F26	135 °C	-40 °C	UL94 HF-1	Push-Pull	Liquid Crystal Polymer (LCP)	Electroless Nickel	Copper Alloy	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Keyed	30 VAC	Shielded	9	Metal	Gold	IP66, IP67, IP68	Bulkhead - Rear Side Nut	Silver	Copper Alloy	Receptacle, Female Sockets	Crimp, Solder Cup
Switchcraft Inc. HS2P9F26-BP	135 °C	-40 °C		Push-Pull	Liquid Crystal Polymer (LCP)	Electroless Nickel	Copper Alloy	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Keyed	30 VAC	Shielded	9	Metal	Gold	IP66, IP67, IP68	Bulkhead - Front Side Nut	Silver	Copper Alloy	Receptacle, Female Sockets	Solder	Panel Mount, Through Hole
Switchcraft Inc. HS2P9F26-BPE	135 °C	-40 °C		Push-Pull	Liquid Crystal Polymer (LCP)	Electroless Nickel	Copper Alloy	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Keyed	30 VAC	Shielded	9	Metal	Gold	IP66, IP67, IP68	Bulkhead - Front Side Nut	Silver	Copper Alloy	Receptacle, Female Sockets	Solder	Panel Mount, Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Receptacle, Female Sockets Crimp or Solder Cup
