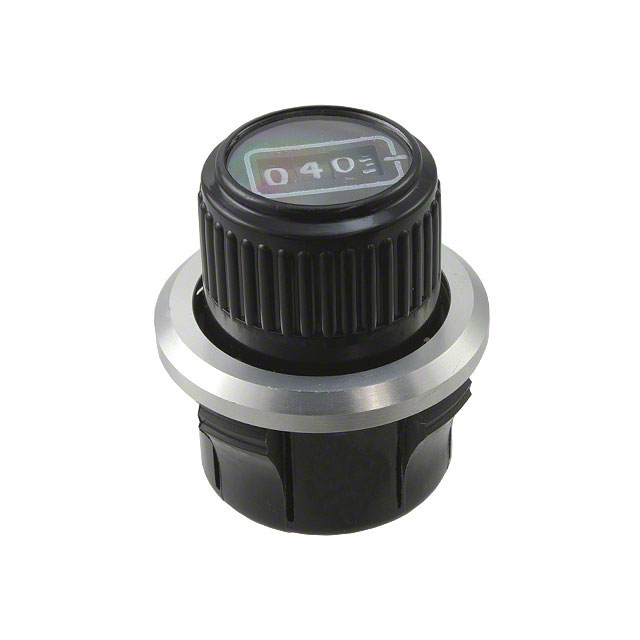

3610S-1-102

Active

Bourns Inc.

POT 1K OHM 1.5W WIREWOUND LINEAR

Search across all available documentation for this part.

Active

Bourns Inc.

POT 1K OHM 1.5W WIREWOUND LINEAR

Technical Specifications

Parameters and characteristics for this part

Part	Resistive Material	Adjustment Type	Number of Turns	Termination Style	Resistance (Ohms)	Actuator Length [x]	Actuator Length [x]	Taper	Temperature Coefficient	Number of Gangs	Tolerance	Size - Body [diameter]	Size - Body [diameter]	Power (Watts)	Actuator Type	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Rotation	Resistance (Ohms)	Bushing Thread
Bourns Inc. 3610S-1-202	Wirewound	User Defined	10	Solder Hook	2k	18.8 mm	0.74 in	Linear	50 ppm/°C	1	5 %	1.24 "	31.5 mm	1.5 W	Knob	0.875 "	22.23 mm	3600 °
Bourns Inc. 3610S-1-103	Wirewound	User Defined	10	Solder Hook	10k	18.8 mm	0.74 in	Linear	50 ppm/°C	1	5 %	1.24 "	31.5 mm	1.5 W	Knob	0.875 "	22.23 mm	3600 °
Bourns Inc. 3610S-2-501	Wirewound	User Defined	10	Solder Hook		17.65 mm	0.695 in	Linear	50 ppm/°C	1	5 %	1.24 "	31.5 mm	1.5 W	Knob	0.875 "	22.23 mm	3600 °	500 Ohms	3/8-32
Bourns Inc. 3610S-2-102	Wirewound	User Defined	10	Solder Hook		17.65 mm	0.695 in	Linear	50 ppm/°C	1	5 %	1.24 "	31.5 mm	1.5 W	Knob	0.875 "	22.23 mm	3600 °	1 kOhms	3/8-32
Bourns Inc. 3610S-2-103	Wirewound	User Defined	10	Solder Hook	10k	17.65 mm	0.695 in	Linear	50 ppm/°C	1	5 %	1.24 "	31.5 mm	1.5 W	Knob	0.875 "	22.23 mm	3600 °		3/8-32
Bourns Inc. 3610S-1-102	Wirewound	User Defined	10	Solder Hook		18.8 mm	0.74 in	Linear	50 ppm/°C	1	5 %	1.24 "	31.5 mm	1.5 W	Knob	0.875 "	22.23 mm	3600 °	1 kOhms
Bourns Inc. 3610S-2-502	Wirewound	User Defined	10	Solder Hook		17.65 mm	0.695 in	Linear	50 ppm/°C	1	5 %	1.24 "	31.5 mm	1.5 W	Knob	0.875 "	22.23 mm	3600 °	5 kOhms	3/8-32

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1k Ohm 1 Gang Linear Panel Mount Potentiometer 10.0 Turns Wirewound 1.5W Solder Hook
