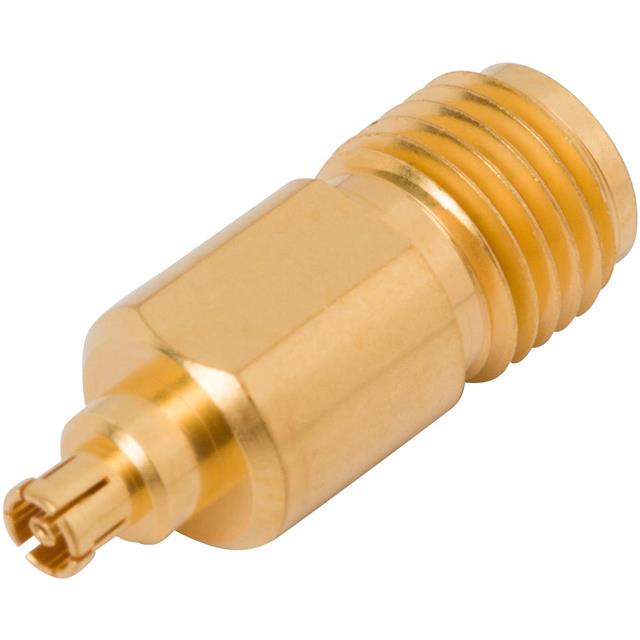

1115-6088

Active

Amphenol SV Microwave

2.92MM FEMALE TO SMPM FEMALE ADA

Search across all available documentation for this part.

Active

Amphenol SV Microwave

2.92MM FEMALE TO SMPM FEMALE ADA

Technical Specifications

Parameters and characteristics for this part

Specification	1115-6088

Adapter Series	SMPM
Adapter Series	2.92 mm
Adapter Type	Jack to Jack
Body Finish	Gold; Passivated
Body Material	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMPM Jack
Convert To (Adapter End)	2.92 mm
Convert To (Adapter End)	OS-2.9 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Frequency - Max [Max]	Dielectric Material	Adapter Series	Adapter Series	Style	Convert From (Adapter End)	Mating Cycles	Center Contact Material	Fastening Type	Impedance	Convert To (Adapter End)	Convert To (Adapter End)	Center Contact Plating	Mounting Type	Conversion Type	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Center Gender	Adapter Type
Amphenol SV Microwave 1115-6088	40 GHz	Polytetrafluoroethylene (PTFE)	SMPM	2.92 mm	Straight	Female Socket SMPM Jack	500	Beryllium Copper	Snap-On Threaded	50 Ohms	2.92 mm	OS-2.9 Jack Female Socket	Gold	Free Hanging (In-Line)	Between Series	Gold; Passivated	-65 ░C	165 °C	Beryllium Copper Stainless Steel	Female to Female	Jack to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMPM Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
