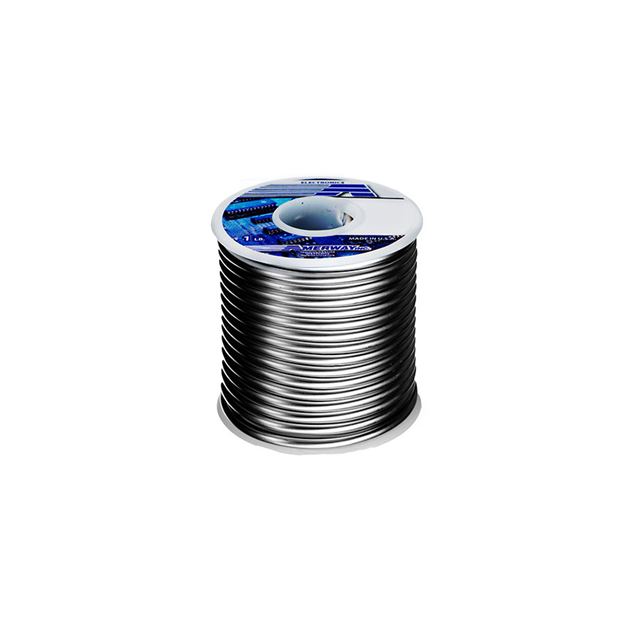

CWSN60WRAP3 .032

Active

Amerway Inc

SN60PB40 WRAP3 .032 DIA 1# SPL

Deep-Dive with AI

Search across all available documentation for this part.

CWSN60WRAP3 .032

Active

Amerway Inc

SN60PB40 WRAP3 .032 DIA 1# SPL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CWSN60WRAP3 .032	CWSN60 Series

Composition	Sn60Pb40 (60/40)	Sn60Pb40 (60/40)
Diameter [diameter]	0.81 mm	0.38 - 1.57 mm
Diameter [diameter]	0.032 in	0.015 - 0.062 in
Flux Type	Rosin Activated (RA)	No-Clean, Rosin Mildly Activated (RMA), Rosin Activated (RA)
Form	Spool, 1 lb (454 g)	Spool, 1 lb (454 g)
Melting Point [custom]	361 °F	361 °F
Melting Point [custom]	183 °C	183 °C
Process	Leaded	Leaded
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature	Room Temperature	Room Temperature
Type	Wire Solder	Wire Solder
Weight	453.59 g	453.59 g
Weight	1 lbs	1 lbs
Wire Gauge	20 AWG	13.5 - 27 AWG

CWSN60 Series

SN60PB40 NCCW2% .032 1# SPL

Part	Diameter [diameter]	Diameter [diameter]	Wire Gauge	Melting Point [custom]	Melting Point [custom]	Weight	Weight	Shelf Life Start	Shelf Life	Form	Type	Storage/Refrigeration Temperature	Composition	Process	Flux Type
Amerway Inc CWSN60NCCW2 .032 1#	0.81 mm	0.032 in	20 AWG	361 °F	183 °C	453.59 g	1 lbs	Date of Manufacture	60 Months	Spool, 1 lb (454 g)	Wire Solder	Room Temperature	Sn60Pb40 (60/40)	Leaded	No-Clean
Amerway Inc CWSN60WRMAP .032	0.81 mm	0.032 in	20 AWG	361 °F	183 °C	453.59 g	1 lbs	Date of Manufacture	60 Months	Spool, 1 lb (454 g)	Wire Solder	Room Temperature	Sn60Pb40 (60/40)	Leaded	Rosin Mildly Activated (RMA)
Amerway Inc CWSN60WRAP3 .032	0.81 mm	0.032 in	20 AWG	361 °F	183 °C	453.59 g	1 lbs	Date of Manufacture	60 Months	Spool, 1 lb (454 g)	Wire Solder	Room Temperature	Sn60Pb40 (60/40)	Leaded	Rosin Activated (RA)
Amerway Inc CWSN60WRMAP3 .062	1.57 mm	0.062 in	13.5 AWG	361 °F	183 °C	453.59 g	1 lbs	Date of Manufacture	60 Months	Spool, 1 lb (454 g)	Wire Solder	Room Temperature	Sn60Pb40 (60/40)	Leaded	Rosin Mildly Activated (RMA)
Amerway Inc CWSN60 NCCW2.2 .015	0.38 mm	0.015 in	27 AWG	361 °F	183 °C	453.59 g	1 lbs	Date of Manufacture	60 Months	Spool, 1 lb (454 g)	Wire Solder	Room Temperature	Sn60Pb40 (60/40)	Leaded	No-Clean
Amerway Inc CWSN60WRMAP3 .015	0.38 mm	0.015 in	27 AWG	361 °F	183 °C	453.59 g	1 lbs	Date of Manufacture	60 Months	Spool, 1 lb (454 g)	Wire Solder	Room Temperature	Sn60Pb40 (60/40)	Leaded	Rosin Mildly Activated (RMA)
Amerway Inc CWSN60WRAP3 .062	1.57 mm	0.062 in	13.5 AWG	361 °F	183 °C	453.59 g	1 lbs	Date of Manufacture	60 Months	Spool, 1 lb (454 g)	Wire Solder	Room Temperature	Sn60Pb40 (60/40)	Leaded	Rosin Activated (RA)
Amerway Inc CWSN60WRAP3 .015	0.38 mm	0.015 in	27 AWG	361 °F	183 °C	453.59 g	1 lbs	Date of Manufacture	60 Months	Spool, 1 lb (454 g)	Wire Solder	Room Temperature	Sn60Pb40 (60/40)	Leaded	Rosin Activated (RA)
Amerway Inc CWSN60NCCW2 .062 1#	1.57 mm	0.062 in	13.5 AWG	361 °F	183 °C	453.59 g	1 lbs	Date of Manufacture	60 Months	Spool, 1 lb (454 g)	Wire Solder	Room Temperature	Sn60Pb40 (60/40)	Leaded	No-Clean

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 53.28
		5	$ 48.10
		10	$ 43.03
		25	$ 39.00

Description

General part information

CWSN60 Series

Leaded Rosin Activated (RA) Wire Solder Sn60Pb40 (60/40) 20 AWG Spool, 1 lb (454 g)

Documents

Technical documentation and resources

No documents available
