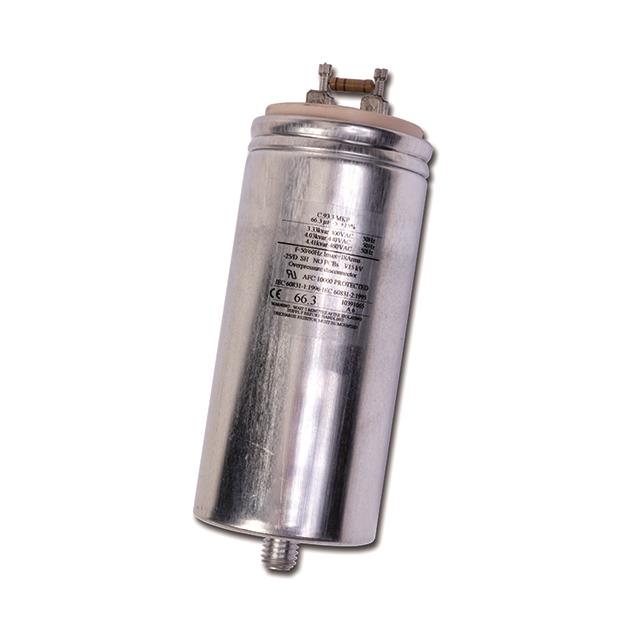

C930ZG36100ZA0X

Active

KEMET

CAP FILM 100UF 400VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 100UF 400VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	C930ZG36100ZA0X

Applications	Power Factor Correction (PFC)
Capacitance	100 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	5.315 in
Height - Seated (Max) [Max]	135 mm
Lead Spacing	0.74 in
Lead Spacing	18.8 mm
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	60 mm
Size / Dimension [diameter]	2.362 in
Termination	Disconnect, Quick Connect
Tolerance [Max]	15 %
Tolerance [Min]	-5 %
Voltage Rating - DC	400 V

Part	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage Rating - DC	Mounting Type	Tolerance [Max]	Tolerance [Min]	Lead Spacing	Lead Spacing	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	Capacitance
KEMET C930ZG36100ZA0X	Disconnect Quick Connect	60 mm	2.362 in	55 °C	-25 °C	Power Factor Correction (PFC)	400 V	Chassis Stud Mount	15 %	-5 %	0.74 in	18.8 mm	Radial Can	5.315 in	135 mm	Metallized Polypropylene (PP)	100 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	224	$ 29.28
Newark	Each	100	$ 31.19
		250	$ 30.27

General part information

100 µF Film Capacitor 400V Polypropylene (PP), Metallized Radial, Can
