1003P3T1B1M1QE

Active

E-Switch

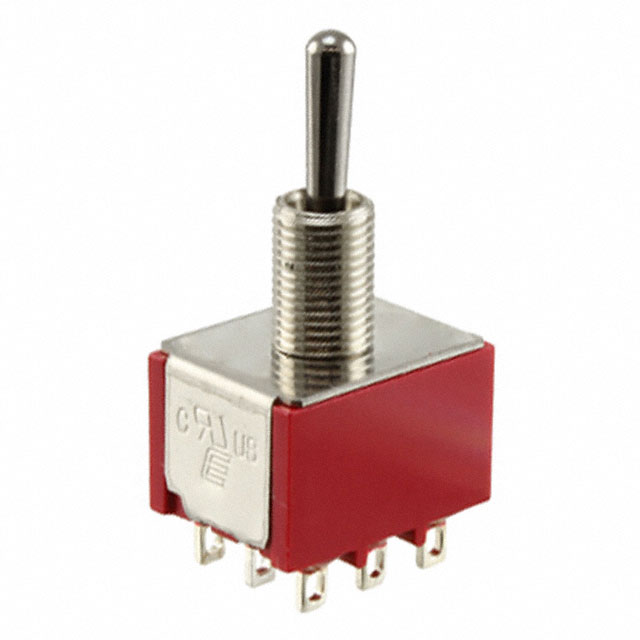

SWITCH TOGGLE 3PDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1003P3T1B1M1QE

Active

E-Switch

SWITCH TOGGLE 3PDT 5A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1003P3T1B1M1QE	1003P3 Series

Actuator Length [x]	10.41 mm	10.41 - 17.98 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round, Flat Anti-Rotation
Bushing Thread	1/4-40	1/4-40, Unthreaded, 15/32-32
Circuit	3PDT	3PDT
Current Rating (Amps)	5 A	0.4 - 5 VA
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Through Hole
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 - 11.91 in
Switch Function	On-Off-On	On-Off-On
Termination Style	Solder Lug	PC Pin, Solder Lug, Wire Wrap
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

1003P3 Series

SWITCH TOGGLE 3PDT 0.4VA 20V

Part	Bushing Thread	Voltage Rating - AC	Circuit	Panel Cutout Dimensions [diameter]	Actuator Material	Actuator Length [x]	Illumination	Electrical Life	Switch Function	Current Rating (Amps)	Termination Style	Actuator Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Mounting Type
E-Switch 1003P3T1B1M2REH	1/4-40	20 V	3PDT	0.25 in	Brass, Chrome Plated	10.41 mm	Non-Illuminated	40000 Cycles	On-Off-On	0.4 VA	PC Pin	Standard Round	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V
E-Switch 1003P3T1B1M1QEH	1/4-40	120 V	3PDT	0.25 in	Brass, Chrome Plated	10.41 mm	Non-Illuminated	40000 Cycles	On-Off-On	5 A	Solder Lug	Standard Round	Epoxy Sealed Terminals	-30 ░C	85 °C	28 V
E-Switch 1003P3T6B12M51RE	Unthreaded	20 V	3PDT		Brass, Chrome Plated	12.3 mm	Non-Illuminated	40000 Cycles	On-Off-On	0.4 VA	Wire Wrap	Flat Anti-Rotation	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	Through Hole
E-Switch 1003P3T7B13M2QE	15/32-32	120 V	3PDT	11.91 mm	Brass, Chrome Plated	13 mm	Non-Illuminated	40000 Cycles	On-Off-On	5 A	PC Pin	Standard Round	Epoxy Sealed Terminals	-30 ░C	85 °C	28 V
E-Switch 1003P3T6B12VS5RE	Unthreaded	20 V	3PDT		Brass, Chrome Plated	12.3 mm	Non-Illuminated	40000 Cycles	On-Off-On	0.4 VA	PC Pin	Flat Anti-Rotation	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	Through Hole
E-Switch 1003P3T1B1M1QE	1/4-40	120 V	3PDT	0.25 in	Brass, Chrome Plated	10.41 mm	Non-Illuminated	40000 Cycles	On-Off-On	5 A	Solder Lug	Standard Round	Epoxy Sealed Terminals	-30 ░C	85 °C	28 V
E-Switch 1003P3T8B13VS2REH	15/32-32	20 V	3PDT	11.91 mm	Brass, Chrome Plated	17.98 mm	Non-Illuminated	40000 Cycles	On-Off-On	0.4 VA	PC Pin	Standard Round	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.66
		10	$ 6.61
		25	$ 6.23
		40	$ 6.04
		80	$ 5.78
		230	$ 5.40
		440	$ 5.18
		945	$ 4.93

Description

General part information

1003P3 Series

Toggle Switch 3PDT Panel Mount
