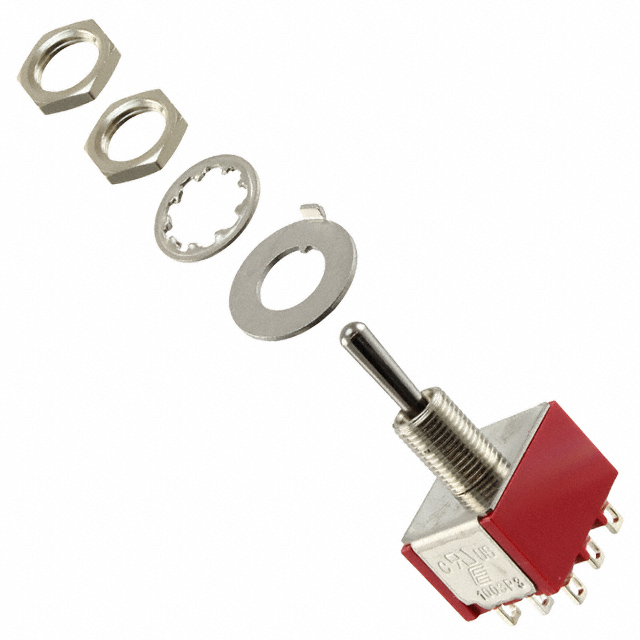

1003P3T1B1M1QEH

Active

E-Switch

SWITCH TOGGLE 3PDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1003P3T1B1M1QEH

Active

E-Switch

SWITCH TOGGLE 3PDT 5A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.53
		10	$ 6.78
		48	$ 6.16
		96	$ 5.96
		288	$ 5.65
		528	$ 5.18
		1008	$ 4.94

Description

General part information

1003P3 Series

Toggle Switch 3PDT Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1003P3T1B1M1QEH	1003P3 Series

Actuator Length [x]	10.41 mm	10.41 - 17.98 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round, Flat Anti-Rotation
Bushing Thread	1/4-40	1/4-40, Unthreaded, 15/32-32
Circuit	3PDT	3PDT
Current Rating (Amps)	5 A	0.4 - 5 VA
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	-	Through Hole
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 - 11.91 in
Switch Function	On-Off-On	On-Off-On
Termination Style	Solder Lug	PC Pin, Solder Lug, Wire Wrap
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

1003P3 Series

SWITCH TOGGLE 3PDT 0.4VA 20V

Part	Bushing Thread	Voltage Rating - AC	Circuit	Panel Cutout Dimensions [diameter]	Actuator Material	Actuator Length [x]	Illumination	Electrical Life	Switch Function	Current Rating (Amps)	Termination Style	Actuator Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Mounting Type
E-Switch 1003P3T1B1M2REH	1/4-40	20 V	3PDT	0.25 in	Brass, Chrome Plated	10.41 mm	Non-Illuminated	40000 Cycles	On-Off-On	0.4 VA	PC Pin	Standard Round	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V
E-Switch 1003P3T1B1M1QEH	1/4-40	120 V	3PDT	0.25 in	Brass, Chrome Plated	10.41 mm	Non-Illuminated	40000 Cycles	On-Off-On	5 A	Solder Lug	Standard Round	Epoxy Sealed Terminals	-30 ░C	85 °C	28 V
E-Switch 1003P3T6B12M51RE	Unthreaded	20 V	3PDT		Brass, Chrome Plated	12.3 mm	Non-Illuminated	40000 Cycles	On-Off-On	0.4 VA	Wire Wrap	Flat Anti-Rotation	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	Through Hole
E-Switch 1003P3T7B13M2QE	15/32-32	120 V	3PDT	11.91 mm	Brass, Chrome Plated	13 mm	Non-Illuminated	40000 Cycles	On-Off-On	5 A	PC Pin	Standard Round	Epoxy Sealed Terminals	-30 ░C	85 °C	28 V
E-Switch 1003P3T6B12VS5RE	Unthreaded	20 V	3PDT		Brass, Chrome Plated	12.3 mm	Non-Illuminated	40000 Cycles	On-Off-On	0.4 VA	PC Pin	Flat Anti-Rotation	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	Through Hole
E-Switch 1003P3T1B1M1QE	1/4-40	120 V	3PDT	0.25 in	Brass, Chrome Plated	10.41 mm	Non-Illuminated	40000 Cycles	On-Off-On	5 A	Solder Lug	Standard Round	Epoxy Sealed Terminals	-30 ░C	85 °C	28 V
E-Switch 1003P3T8B13VS2REH	15/32-32	20 V	3PDT	11.91 mm	Brass, Chrome Plated	17.98 mm	Non-Illuminated	40000 Cycles	On-Off-On	0.4 VA	PC Pin	Standard Round	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V
