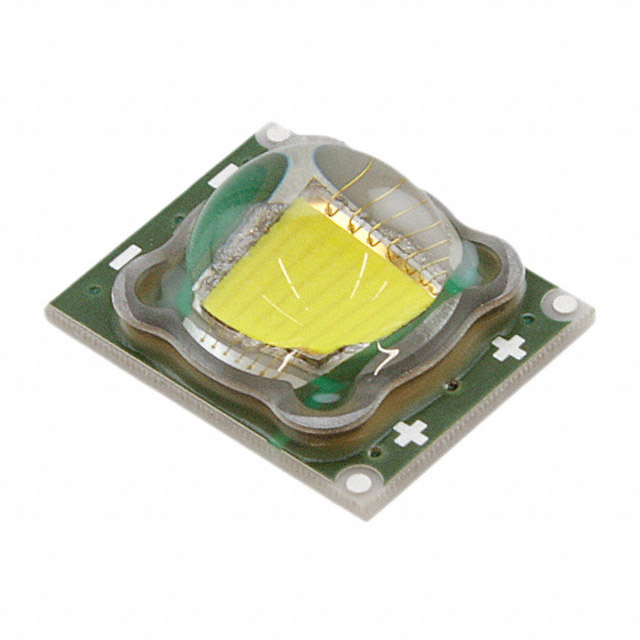

SST-50-W65S-F21-GJ100

Obsolete

Luminus Devices Inc.

LED COB SST-50 COOL WH SQ 6500K

Search across all available documentation for this part.

Obsolete

Luminus Devices Inc.

LED COB SST-50 COOL WH SQ 6500K

Technical Specifications

Parameters and characteristics for this part

Specification	SST-50-W65S-F21-GJ100

CCT (K)	6500 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	70
Current - Max [Max]	5 A
Current - Test	1.75 A
Height [z]	4.3 mm
Lens Type	Domed
Light Emitting Surface (LES) [diameter]	5.6 mm
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	9 mm
Type	Chip On Board (COB)
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ)	3.2 V

Part	Height [z]	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Configuration	Color	Current - Max [Max]	Lens Type	Type	CCT (K)	Voltage - Forward (Vf) (Typ)	Current - Test	Lumens/Watt @ Current - Test
Luminus Devices Inc. SST-50-W65S-F21-GJ100	4.3 mm	70	5.6 mm	9 mm	7.3 mm	100 °	Square	Cool White	5 A	Domed	Chip On Board (COB)	6500 K	3.2 V	1.75 A
Luminus Devices Inc. SST-50-W40S-F21-H3500	4.3 mm	70	5.6 mm	9 mm	7.3 mm	100 °	Square	Neutral White	5 A	Domed	Chip On Board (COB)	4000 K	3.2 V	1.75 A	74 lm/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) SST-50 White, Cool Square
