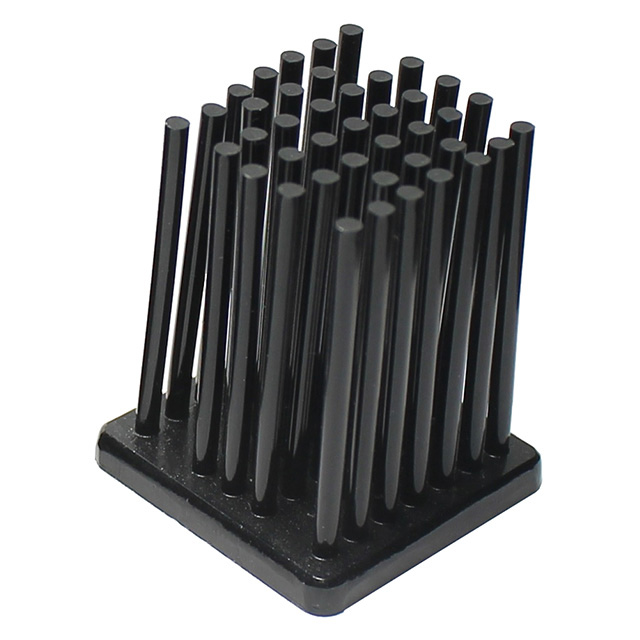

HEATSINK FORGED BLK ANO TOP MNT

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK FORGED BLK ANO TOP MNT

Technical Specifications

Parameters and characteristics for this part

Specification	APR23-23-18CB/A01

Attachment Method	Thermal Tape, Adhesive (Included)
Length [x]	22.61 mm
Length [x]	0.89 in
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Pin Fins
Shelf Life	24 Months
Thermal Resistance @ Forced Air Flow	200 LFM, 5.26 °C/W
Thermal Resistance @ Natural	13.54 °C/W
Type	Top Mount
Width	22.61 mm
Width [y]	0.89 "

Part	Length [x]	Length [x]	Width	Width [y]	Fin Height [z]	Fin Height [z]	Material Finish	Type	Material	Thermal Resistance @ Forced Air Flow	Shelf Life	Shape	Package Cooled	Thermal Resistance @ Natural	Attachment Method	Fin Height	Fin Height
Tusonix a Subsidiary of CTS Electronic Components APR23-23-15CB/A01	22.61 mm	0.89 in	22.61 mm	0.89 "	0.575 in	14.6 mm	Black Anodized	Top Mount	Aluminum Alloy	5.62 °C/W	24 Months	Pin Fins Square	ASIC BGA CPU LGA	13.93 °C/W	Thermal Tape Adhesive (Included)
Tusonix a Subsidiary of CTS Electronic Components APR23-23-18CB/A01	22.61 mm	0.89 in	22.61 mm	0.89 "			Black Anodized	Top Mount	Aluminum Alloy	5.26 °C/W 200 LFM	24 Months	Pin Fins Square	ASIC BGA CPU LGA	13.54 °C/W	Thermal Tape Adhesive (Included)
Tusonix a Subsidiary of CTS Electronic Components APR23-23-28CB/A01	22.61 mm	0.89 in	22.61 mm	0.89 "	1.087 in	27.6 mm	Black Anodized	Top Mount	Aluminum Alloy	4.26 °C/W 200 LFM	24 Months	Pin Fins Square	ASIC BGA CPU LGA	11.88 °C/W	Thermal Tape Adhesive (Included)
Tusonix a Subsidiary of CTS Electronic Components APR23-23-21CB/A01	22.61 mm	0.89 in	22.61 mm	0.89 "	0.811 in	20.6 mm	Black Anodized	Top Mount	Aluminum Alloy	4.94 °C/W 200 LFM	24 Months	Pin Fins Square	ASIC BGA CPU LGA	13.2 °C/W	Thermal Tape Adhesive (Included)
Tusonix a Subsidiary of CTS Electronic Components APR23-23-33CB/A01	22.61 mm	0.89 in	22.61 mm	0.89 "			Black Anodized	Top Mount	Aluminum Alloy	3.99 °C/W 200 LFM	24 Months	Pin Fins Square	ASIC BGA CPU LGA	11.29 °C/W	Thermal Tape Adhesive (Included)	1.283 "	32.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 5.56

General part information

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Alloy Top Mount
