431100-04-0

Active

Curtis Industries

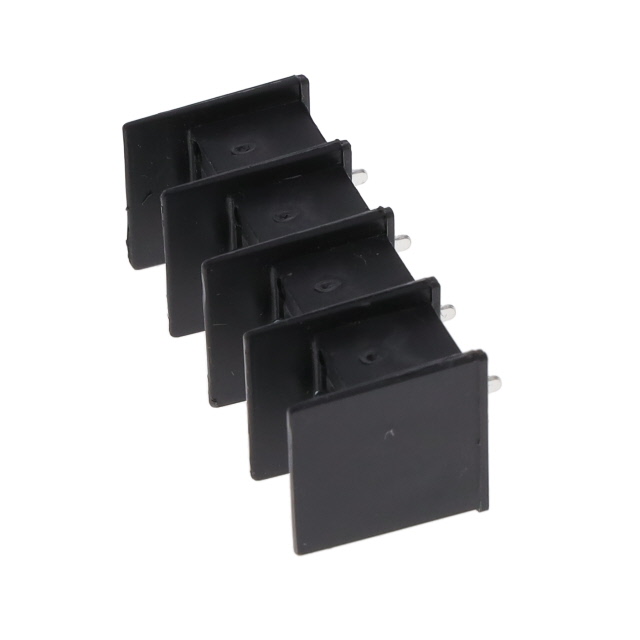

CONN BARRIER STRIP 4CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTerminal Blocks Catalog Datasheet

431100-04-0

Active

Curtis Industries

CONN BARRIER STRIP 4CIRC 0.438"

Deep-Dive with AI

DocumentsTerminal Blocks Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	431100-04-0	431100 Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	PC Pin	PC Pin
Current Rating (Amps)	20 A	20 A
Material - Insulation	Polypropylene (PP)	Polypropylene (PP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Circuits	4	2 - 24
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	4	2 - 21
Operating Temperature	105 C	105 C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Zinc	Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Voltage Rating	600 V	600 V
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

431100 Series

CONN BARRIER STRP 24CIRC 0.438"

Part	Voltage Rating	Current Rating (Amps)	Wire Gauge [Min]	Wire Gauge [Max]	Pitch [x]	Pitch [x]	Bottom Termination	Terminal Block Type	Mounting Type	Number of Circuits	Top Termination	Terminal Screw Finish	Material - Insulation	Barrier Type	Operating Temperature	Number of Rows	Material Flammability Rating	Terminal Screw Material	Number of Circuits [custom]	Number of Wire Entries
Curtis Industries 431100-24-0	600 V	20 A	12 AWG	22 AWG	11.12 mm	0.438 in	PC Pin	Barrier Block	Through Hole	24	Screws	Zinc	Polypropylene (PP)	2 Wall (Dual)	105 C	1	UL94 V-0	Steel
Curtis Industries 431100-08-0	600 V	20 A	12 AWG	22 AWG	11.12 mm	0.438 in	PC Pin	Barrier Block	Through Hole		Screws	Zinc	Polypropylene (PP)	2 Wall (Dual)	105 C	1	UL94 V-0	Steel	8	8
Curtis Industries 431100-17-0	600 V	20 A	12 AWG	22 AWG	11.12 mm	0.438 in	PC Pin	Barrier Block	Through Hole	17	Screws	Zinc	Polypropylene (PP)	2 Wall (Dual)	105 C	1	UL94 V-0	Steel		17
Curtis Industries 431100-21-0	600 V	20 A	12 AWG	22 AWG	11.12 mm	0.438 in	PC Pin	Barrier Block	Through Hole	21	Screws	Zinc	Polypropylene (PP)	2 Wall (Dual)	105 C	1	UL94 V-0	Steel		21
Curtis Industries 431100-16-0	600 V	20 A	12 AWG	22 AWG	11.12 mm	0.438 in	PC Pin	Barrier Block	Through Hole	16	Screws	Zinc	Polypropylene (PP)	2 Wall (Dual)	105 C	1	UL94 V-0	Steel		16
Curtis Industries 431100-18-0	600 V	20 A	12 AWG	22 AWG	11.12 mm	0.438 in	PC Pin	Barrier Block	Through Hole	18	Screws	Zinc	Polypropylene (PP)	2 Wall (Dual)	105 C	1	UL94 V-0	Steel		18
Curtis Industries 431100-02-0	600 V	20 A	12 AWG	22 AWG	11.12 mm	0.438 in	PC Pin	Barrier Block	Through Hole	2	Screws	Zinc	Polypropylene (PP)	2 Wall (Dual)	105 C	1	UL94 V-0	Steel		2
Curtis Industries 431100-07-0	600 V	20 A	12 AWG	22 AWG	11.12 mm	0.438 in	PC Pin	Barrier Block	Through Hole	7	Screws	Zinc	Polypropylene (PP)	2 Wall (Dual)	105 C	1	UL94 V-0	Steel		7
Curtis Industries 431100-11-0	600 V	20 A	12 AWG	22 AWG	11.12 mm	0.438 in	PC Pin	Barrier Block	Through Hole	11	Screws	Zinc	Polypropylene (PP)	2 Wall (Dual)	105 C	1	UL94 V-0	Steel		11
Curtis Industries 431100-04-0	600 V	20 A	12 AWG	22 AWG	11.12 mm	0.438 in	PC Pin	Barrier Block	Through Hole	4	Screws	Zinc	Polypropylene (PP)	2 Wall (Dual)	105 C	1	UL94 V-0	Steel		4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.37
		10	$ 1.80
		25	$ 1.69
		50	$ 1.50
		100	$ 1.47
		250	$ 1.44

Description

General part information

431100 Series

4 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Terminal Blocks Catalog

Datasheet
