431100-11-0
ActiveCurtis Industries

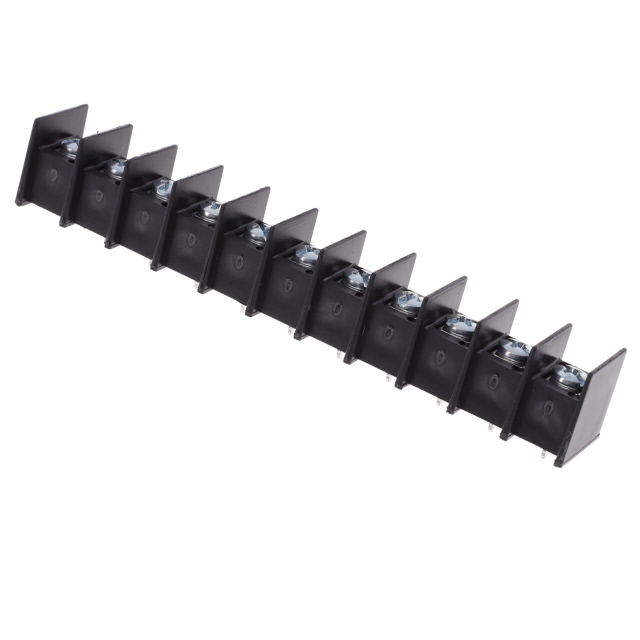

CONN BARRIER STRP 11CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
431100-11-0
ActiveCurtis Industries
CONN BARRIER STRP 11CIRC 0.438"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 431100-11-0 | 431100 Series |
|---|---|---|
| - | - | |
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin | PC Pin |
| Current Rating (Amps) | 20 A | 20 A |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Circuits | 11 | 2 - 24 |
| Number of Circuits | - | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 11 | 2 - 21 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 11.12 mm | 11.12 mm |
| Pitch [x] | 0.438 in | 0.438 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Zinc | Zinc |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Voltage Rating | 600 V | 600 V |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.96 | |
431100 Series
PLUGIN BARRIER TERMINAL BLOCKS ROHS
| Part | Voltage Rating | Current Rating (Amps) | Wire Gauge [Min] | Wire Gauge [Max] | Pitch [x] | Pitch [x] | Bottom Termination | Terminal Block Type | Mounting Type | Number of Circuits | Top Termination | Terminal Screw Finish | Material - Insulation | Barrier Type | Operating Temperature | Number of Rows | Material Flammability Rating | Terminal Screw Material | Number of Circuits [custom] | Number of Wire Entries |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 431100-07-0 | ||||||||||||||||||||
Curtis Industries 431100-24-0 | 600 V | 20 A | 12 AWG | 22 AWG | 11.12 mm | 0.438 in | PC Pin | Barrier Block | Through Hole | 24 | Screws | Zinc | Polypropylene (PP) | 2 Wall (Dual) | 105 C | 1 | UL94 V-0 | Steel | ||
Curtis Industries 431100-08-0 | 600 V | 20 A | 12 AWG | 22 AWG | 11.12 mm | 0.438 in | PC Pin | Barrier Block | Through Hole | Screws | Zinc | Polypropylene (PP) | 2 Wall (Dual) | 105 C | 1 | UL94 V-0 | Steel | 8 | 8 | |
Curtis Industries 431100-02-0 | ||||||||||||||||||||
Curtis Industries 431100-17-0 | 600 V | 20 A | 12 AWG | 22 AWG | 11.12 mm | 0.438 in | PC Pin | Barrier Block | Through Hole | 17 | Screws | Zinc | Polypropylene (PP) | 2 Wall (Dual) | 105 C | 1 | UL94 V-0 | Steel | 17 | |
Curtis Industries 431100-21-0 | 600 V | 20 A | 12 AWG | 22 AWG | 11.12 mm | 0.438 in | PC Pin | Barrier Block | Through Hole | 21 | Screws | Zinc | Polypropylene (PP) | 2 Wall (Dual) | 105 C | 1 | UL94 V-0 | Steel | 21 | |
Curtis Industries 431100-18-0 | 600 V | 20 A | 12 AWG | 22 AWG | 11.12 mm | 0.438 in | PC Pin | Barrier Block | Through Hole | 18 | Screws | Zinc | Polypropylene (PP) | 2 Wall (Dual) | 105 C | 1 | UL94 V-0 | Steel | 18 | |
Curtis Industries 431100-02-0 | 600 V | 20 A | 12 AWG | 22 AWG | 11.12 mm | 0.438 in | PC Pin | Barrier Block | Through Hole | 2 | Screws | Zinc | Polypropylene (PP) | 2 Wall (Dual) | 105 C | 1 | UL94 V-0 | Steel | 2 | |
Curtis Industries 431100-07-0 | 600 V | 20 A | 12 AWG | 22 AWG | 11.12 mm | 0.438 in | PC Pin | Barrier Block | Through Hole | 7 | Screws | Zinc | Polypropylene (PP) | 2 Wall (Dual) | 105 C | 1 | UL94 V-0 | Steel | 7 | |
Curtis Industries 431100-11-0 | 600 V | 20 A | 12 AWG | 22 AWG | 11.12 mm | 0.438 in | PC Pin | Barrier Block | Through Hole | 11 | Screws | Zinc | Polypropylene (PP) | 2 Wall (Dual) | 105 C | 1 | UL94 V-0 | Steel | 11 |
Description
General part information
431100 Series
11 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
