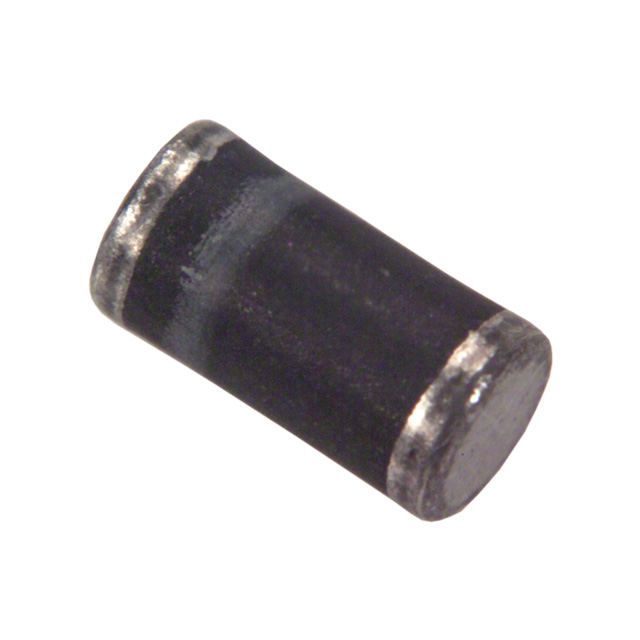

ZM4730A-13
ObsoleteDiodes Inc
ZENER DIODE, 3.9V V(Z), 5%, 1W, SILICON, UNIDIRECTIONAL, GLASS, MELF-2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZM4730A-13
ObsoleteDiodes Inc
ZENER DIODE, 3.9V V(Z), 5%, 1W, SILICON, UNIDIRECTIONAL, GLASS, MELF-2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZM4730A-13 |
|---|---|
| Current - Reverse Leakage @ Vr | 50 ÁA |
| Impedance (Max) (Zzt) | 9 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | DO-213AB, MELF (Glass) |
| Power - Max [Max] | 1 W |
| Supplier Device Package | MELF |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V |
| Voltage - Zener (Nom) (Vz) | 3.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ZM4730 Series
Zener Diode 3.9 V 1 W ±5% Surface Mount MELF
