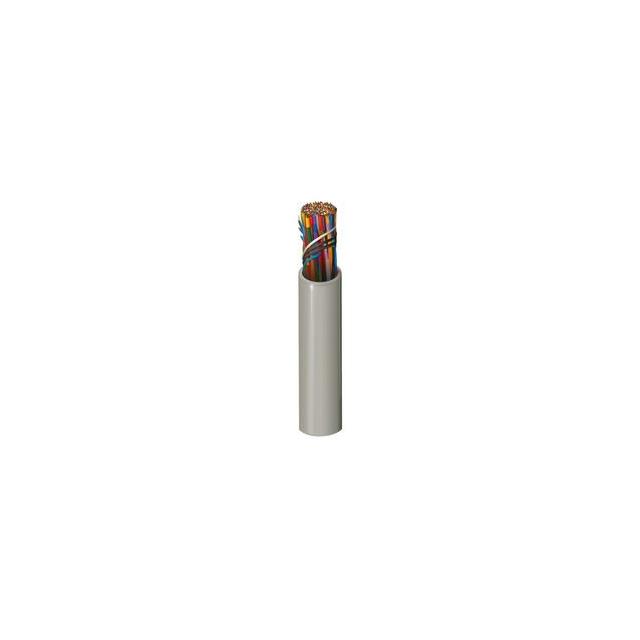

DIW50 7321000

Obsolete

Belden Inc.

CAT3 50PR U/UTP CMR REEL SMI80

Search across all available documentation for this part.

Obsolete

Belden Inc.

CAT3 50PR U/UTP CMR REEL SMI80

Technical Specifications

Parameters and characteristics for this part

Specification	DIW50 7321000

Cable Type	Multi-Pair, Cat3
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.54 "
Jacket (Insulation) Diameter [diameter]	13.72 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket Color	Olive
Length	1000 ft
Length	304.8 m
Number of Conductors	100
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style CMR
Usage	Network
Voltage	300 V
Wire Gauge	24 AWG

Part	Cable Type	Conductor Strand	Features	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Jacket Color	Voltage	Conductor Insulation	Jacket (Insulation) Material	Conductor Material	Wire Gauge	Number of Conductors	Ratings
Belden Inc. DIW50 7322500	Multi-Pair Cat3	Solid	Rip Cord	-30 ░C	60 °C	Network	0.54 "	13.72 mm	2500 ft	762 m	Olive	300 V	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC) Riser	Copper Bare	24 AWG	100	UL Style CMR
Belden Inc. DIW50 7321000	Multi-Pair Cat3	Solid	Rip Cord	-30 ░C	60 °C	Network	0.54 "	13.72 mm	1000 ft	304.8 m	Olive	300 V	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC) Riser	Copper Bare	24 AWG	100	UL Style CMR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 (50 Pair) Conductor Multi-Pair, Cat3 Cable Olive 24 AWG 1000.0' (304.8m)
