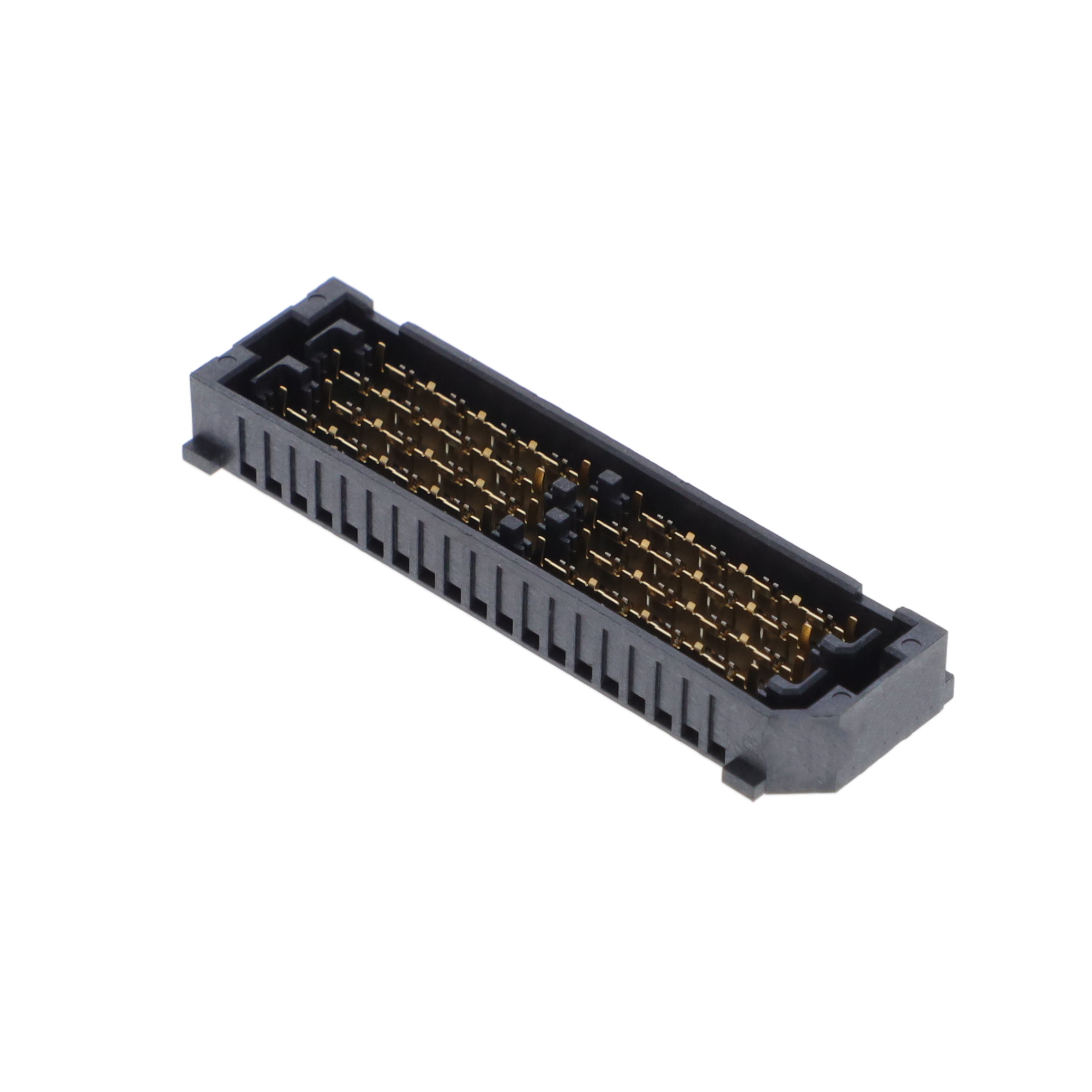

NVAM-DP-04-2-02.0-S-2-K-TR - NVAM-DP-04-2-02.0-S-2-K-TR

NVAM-DP-04-2-02.0-S-2-K-TR

Active
Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS 0.80 MM NOVARAY EXTREME DENSITY & PERFORMANCE TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
NVAM-DP-04-2-02.0-S-2-K-TR - NVAM-DP-04-2-02.0-S-2-K-TR

NVAM-DP-04-2-02.0-S-2-K-TR

Active
Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS 0.80 MM NOVARAY EXTREME DENSITY & PERFORMANCE TERMINAL

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationNVAM-DP-04-2-02.0-S-2-K-TR
Connector TypeHigh Density Array, Male
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
FeaturesPick and Place, Board Guide
Height Above Board5.45 mm
Height Above Board [z]0.214 in
Mated Stacking Heights7 mm, 9 mm
Mounting TypeSurface Mount
Number of Positions64

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 27.80
10$ 26.25
25$ 25.33
50$ 24.71
100$ 20.07
Digi-Reel® 1$ 27.80
10$ 26.25
25$ 25.33
50$ 24.71
100$ 20.07
Tape & Reel (TR) 400$ 18.51
800$ 15.22
SagerN/A 1$ 27.80
10$ 26.25
25$ 25.33
50$ 24.71
100$ 20.07
250$ 18.51
500$ 15.41
800$ 12.00

Description

General part information

NVAM Series

Board to Board & Mezzanine Connectors 0.80 mm NovaRay Extreme Density & Performance Terminal

Documents

Technical documentation and resources

Datasheet

Document
