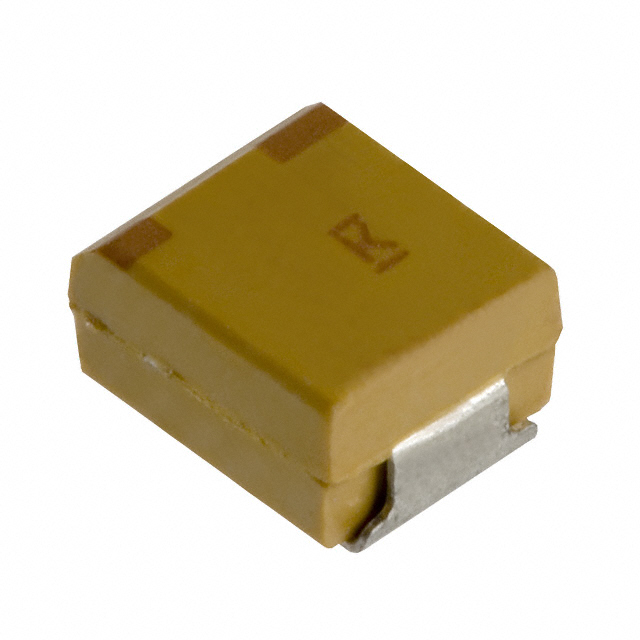

T496B105K035ATE5K0

Active

KEMET

SURFACE MOUNT TANTALUM CAPACITOR, 1 ΜF, 35 V, 1411 [3528 METRIC], ± 10%, 5 OHM, B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT496B105K035ATE5K0 Datasheet +4

T496B105K035ATE5K0

Active

KEMET

SURFACE MOUNT TANTALUM CAPACITOR, 1 ΜF, 35 V, 1411 [3528 METRIC], ± 10%, 5 OHM, B

Deep-Dive with AI

DocumentsT496B105K035ATE5K0 Datasheet +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T496B105K035ATE5K0

Capacitance	1 µF
ESR (Equivalent Series Resistance)	5 Ohm
Features	Fail Safe with Built-in Fuse
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	B
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1411
Package / Case	3528 Metric
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	10 %
Type	Molded
Voltage - Rated	35 V

T496B Series

Part	Voltage - Rated	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Features	ESR (Equivalent Series Resistance)	Manufacturer Size Code	Tolerance	Package / Case	Package / Case	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Capacitance
KEMET T496B106M006AT	6.3 V	Molded	0.11 in	2.8 mm	0.138 "	3.5 mm	-55 °C	125 °C	Fail Safe with Built-in Fuse	3.5 Ohms	B	20 %	1411	3528 Metric	2000 Hrs	2.1 mm	0.083 "	Surface Mount	10 µF
KEMET T496B225M016ATE3K5	16 V	Molded	0.11 in	2.8 mm	0.138 "	3.5 mm	-55 °C	125 °C	Fail Safe with Built-in Fuse	3.5 Ohms	B	20 %	1411	3528 Metric	2000 Hrs	2.1 mm	0.083 "	Surface Mount	2.2 µF
KEMET T496B225K020AT	20 V	Molded	0.11 in	2.8 mm	0.138 "	3.5 mm	-55 °C	125 °C	Fail Safe with Built-in Fuse	3.5 Ohms	B	10 %	1411	3528 Metric	2000 Hrs	2.1 mm	0.083 "	Surface Mount	2.2 µF
KEMET T496B225M020ATE3K5	20 V	Molded	0.11 in	2.8 mm	0.138 "	3.5 mm	-55 °C	125 °C	Fail Safe with Built-in Fuse	3.5 Ohms	B	20 %	1411	3528 Metric	2000 Hrs	2.1 mm	0.083 "	Surface Mount	2.2 µF
KEMET T496B106M016ATE3K5	16 V	Molded	0.11 in	2.8 mm	0.138 "	3.5 mm	-55 °C	125 °C	Fail Safe with Built-in Fuse	3.5 Ohms	B	20 %	1411	3528 Metric	2000 Hrs	2.1 mm	0.083 "	Surface Mount	10 µF
KEMET T496B475M010ATE3K5	10 V	Molded	0.11 in	2.8 mm	0.138 "	3.5 mm	-55 °C	125 °C	Fail Safe with Built-in Fuse	3.5 Ohms	B	20 %	1411	3528 Metric	2000 Hrs	2.1 mm	0.083 "	Surface Mount	4.7 µF
KEMET T496B105K035ATE5K0	35 V	Molded	0.11 in	2.8 mm	0.138 "	3.5 mm	-55 °C	125 °C	Fail Safe with Built-in Fuse	5 Ohm	B	10 %	1411	3528 Metric	2000 Hrs	2.1 mm	0.083 "	Surface Mount	1 µF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.84
		10	$ 1.38
		50	$ 1.26
		100	$ 1.03
		500	$ 0.82
		1000	$ 0.73
	Digi-Reel®	1	$ 1.84
		10	$ 1.38
		50	$ 1.26
		100	$ 1.03
		500	$ 0.82
		1000	$ 0.73
	Tape & Reel (TR)	2000	$ 0.60
Newark	Each (Supplied on Cut Tape)	500	$ 0.81

Description

General part information

T496B Series

The T496 Series of tantalum chip capacitors offers a "fail safe" design. The built-in fuse element offers excellent protection from damaging short circuit conditions in applications where damaging high fault currents exist. Protection from costly circuit damage due to reversed installation is offered with this device. This series is classified as MSL (Moisture Sensitivity Level) 1 under J STD 020: unlimited floor life time at ≤ 30°C/85% RH.
