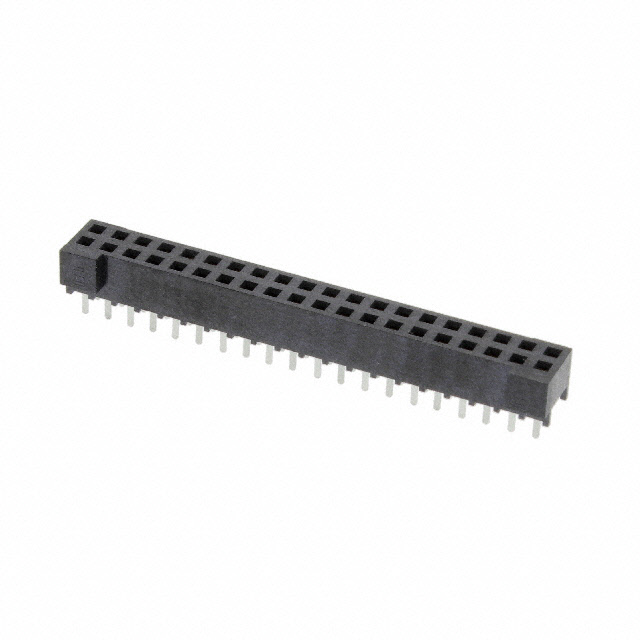

S2M-120-01-L-D

Active

Samtec Inc.

CONN SOCKET 40POS 0.079 GOLD PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET 40POS 0.079 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	S2M-120-01-L-D

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post [x]	2.08 mm
Contact Length - Post [x]	0.082 "
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2.6 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.51 mm
Insulation Height	0.178 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

Part	Termination	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Contact Type	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Insulation Material	Number of Positions Loaded	Number of Positions	Mounting Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Contact Finish - Mating
Samtec Inc. S2M-120-01-L-D	Solder	4.51 mm	0.178 in	2.6 A	Square	10 çin	0.25 çm	Push-Pull	Tin	2.08 mm	0.082 "	2	Female Socket	Beryllium Copper	0.079 in	2 mm	Socket	Liquid Crystal Polymer (LCP)	All	40	Through Hole	Board to Board Cable	-55 °C	125 °C	0.079 in	2 mm	Black	Gold
