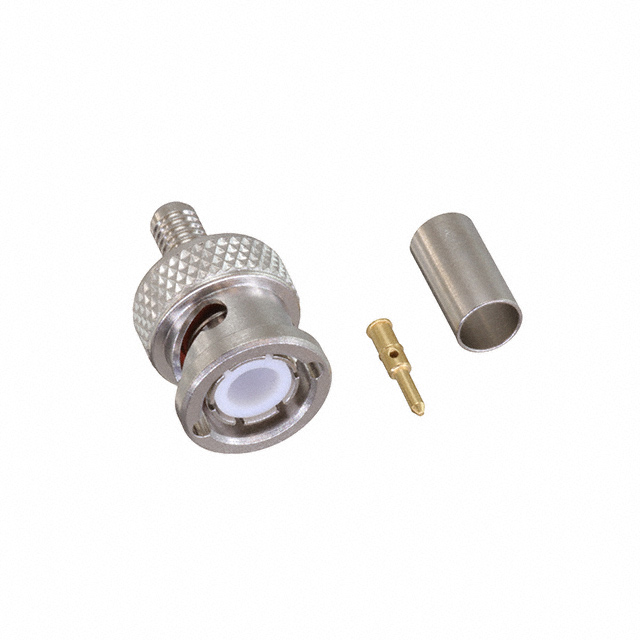

R141082000W

Active

Radiall USA, Inc.

BNC M STR CR 5/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC M STR CR 5/50S

Technical Specifications

Parameters and characteristics for this part

Specification	R141082000W

Body Finish	Nickel
Body Material	Brass
Cable Group	141
Cable Group	RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Connector Type	Center Contact Plating	Body Material	Center Contact Material	Connector Style	Impedance	Cable Group	Cable Group	Body Finish	Mounting Type	Contact Termination	Fastening Type	Voltage Rating	Housing Color	Mating Cycles	Number of Ports	Dielectric Material	Frequency - Max [Max]	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]
Radiall USA, Inc. R141082000	Male Pin Plug	Gold	Brass	Brass	BNC	50 Ohms	141	RG-58	Nickel	Free Hanging (In-Line)	Crimp	Bayonet Lock	500 V	Silver	500	1	Polytetrafluoroethylene (PTFE)	4 GHz	Crimp	-65 ░C	165 °C
Radiall USA, Inc. R141082000W	Male Pin Plug	Gold	Brass	Brass	BNC	50 Ohms	141	RG-58	Nickel	Free Hanging (In-Line)	Crimp	Bayonet Lock	500 V	Silver	500	1	Polytetrafluoroethylene (PTFE)	4 GHz	Crimp	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
