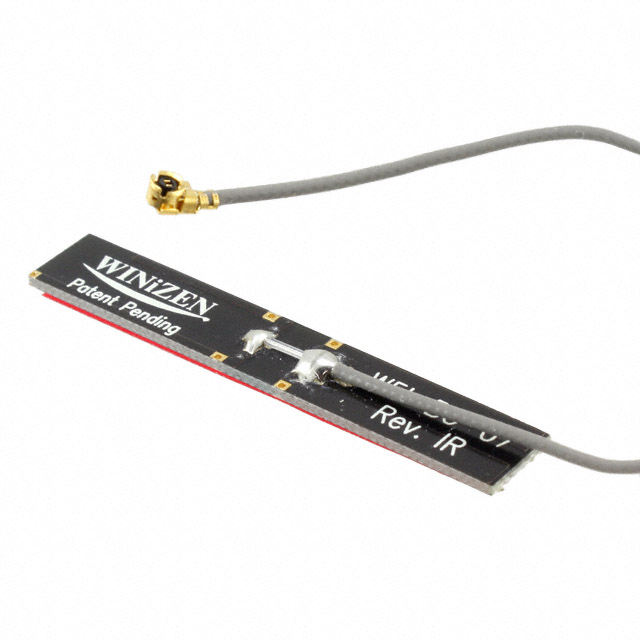

W5I-BO-07
UnknownWIZnet
ANTENNA PCB 2.5DBI GAIN 2483.5MHZ
W5I-BO-07
UnknownWIZnet
ANTENNA PCB 2.5DBI GAIN 2483.5MHZ
Description
General part information
W5I-BO Series
2.4GHz Bluetooth, WLAN, Zigbee™ PCB Trace RF Antenna 2.4GHz ~ 2.483GHz 2.5dBi U.FL (UMCC), IPEX MHF1 Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | W5I-BO-07 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | WLAN, Bluetooth, Zigbee™ |
| Features | Cable, 130mm |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.483 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 2.5 dBi |
| Height (Max) | 0.039 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Return Loss | -22.36 dB |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination | IPEX MHF1, U.FL (UMCC) |
| Termination Type | U.FL, I-PEX MHF1 |
| VSWR | 1.9 |
