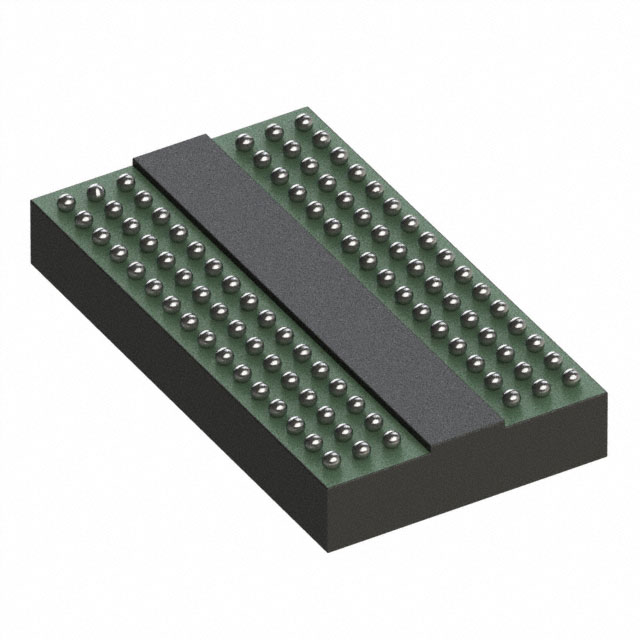

NDL46PFP-9MIT

Active

Insignis Technology Corporation

IC DRAM 4GBIT PARALLEL 96FBGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NDL46PFP-9MIT

Active

Insignis Technology Corporation

IC DRAM 4GBIT PARALLEL 96FBGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NDL46PFP-9MIT	NDL46 Series

Access Time	20 ns	20 ns
Clock Frequency	933 MHz	800 - 1066 MHz
Memory Format	DRAM	DRAM
Memory Interface	Parallel	Parallel
Memory Organization	256 M	256 M
Memory Size	512 kb	512 kb
Memory Type	Volatile	Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	95 °C	95 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Package / Case	96-TFBGA	96-TFBGA
Supplier Device Package	7.5, 13.5	7.5 - 13.5
Supplier Device Package	96-FBGA	96-FBGA
Technology	SDRAM - DDR3L	SDRAM - DDR3L
Voltage - Supply [Max]	1.45 V	1.45 V
Voltage - Supply [Min]	1.283 V	1.283 V
Write Cycle Time - Word, Page	15 ns	15 ns

NDL46 Series

IC DRAM 4GBIT PARALLEL 96FBGA

Part	Supplier Device Package	Supplier Device Package	Memory Organization	Technology	Access Time	Memory Size	Memory Interface	Memory Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Clock Frequency	Mounting Type	Memory Format	Write Cycle Time - Word, Page	Voltage - Supply [Max]	Voltage - Supply [Min]
Insignis Technology Corporation NDL46PFP-9MIT	7.5, 13.5	96-FBGA	256 M	SDRAM - DDR3L	20 ns	512 kb	Parallel	Volatile	96-TFBGA	95 °C	-40 °C	933 MHz	Surface Mount	DRAM	15 ns	1.45 V	1.283 V
Insignis Technology Corporation NDL46PFP-5GIT	7.5, 13.5	96-FBGA	256 M	SDRAM - DDR3L	20 ns	512 kb	Parallel	Volatile	96-TFBGA	95 °C	-40 °C	1066 MHz	Surface Mount	DRAM	15 ns	1.45 V	1.283 V
Insignis Technology Corporation NDL46PFP-8KIT	7.5, 13.5	96-FBGA	256 M	SDRAM - DDR3L	20 ns	512 kb	Parallel	Volatile	96-TFBGA	95 °C	-40 °C	800 MHz	Surface Mount	DRAM	15 ns	1.45 V	1.283 V
Insignis Technology Corporation NDL46PFP-9MET	7.5, 13.5	96-FBGA	256 M	SDRAM - DDR3L		512 kb	Parallel	Volatile	96-TFBGA	95 °C	0 °C	933 MHz	Surface Mount	DRAM		1.45 V	1.283 V
Insignis Technology Corporation NDL46PFP-9MET TR	7.5, 13.5	96-FBGA	256 M	SDRAM - DDR3L		512 kb	Parallel	Volatile	96-TFBGA	95 °C	0 °C	933 MHz	Surface Mount	DRAM		1.45 V	1.283 V
Insignis Technology Corporation NDL46PFP-9MIT TR	7.5, 13.5	96-FBGA	256 M	SDRAM - DDR3L	20 ns	512 kb	Parallel	Volatile	96-TFBGA	95 °C	-40 °C	933 MHz	Surface Mount	DRAM	15 ns	1.45 V	1.283 V
Insignis Technology Corporation NDL46PFP-8KET	7.5, 13.5	96-FBGA	256 M	SDRAM - DDR3L		512 kb	Parallel	Volatile	96-TFBGA	95 °C	0 °C	800 MHz	Surface Mount	DRAM		1.45 V	1.283 V
Insignis Technology Corporation NDL46PFP-8KET TR	7.5, 13.5	96-FBGA	256 M	SDRAM - DDR3L		512 kb	Parallel	Volatile	96-TFBGA	95 °C	0 °C	800 MHz	Surface Mount	DRAM		1.45 V	1.283 V
Insignis Technology Corporation NDL46PFP-5GET	7.5, 13.5	96-FBGA	256 M	SDRAM - DDR3L	20 ns	512 kb	Parallel	Volatile	96-TFBGA	95 °C	0 °C	1066 MHz	Surface Mount	DRAM	15 ns	1.45 V	1.283 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.58
		10	$ 10.73
		25	$ 10.49
		40	$ 10.43
		209	$ 9.18
		418	$ 8.73
		627	$ 8.64
		1045	$ 8.35

Description

General part information

NDL46 Series

SDRAM - DDR3L Memory IC 4Gbit Parallel 933 MHz 20 ns 96-FBGA (7.5x13.5)

Documents

Technical documentation and resources
