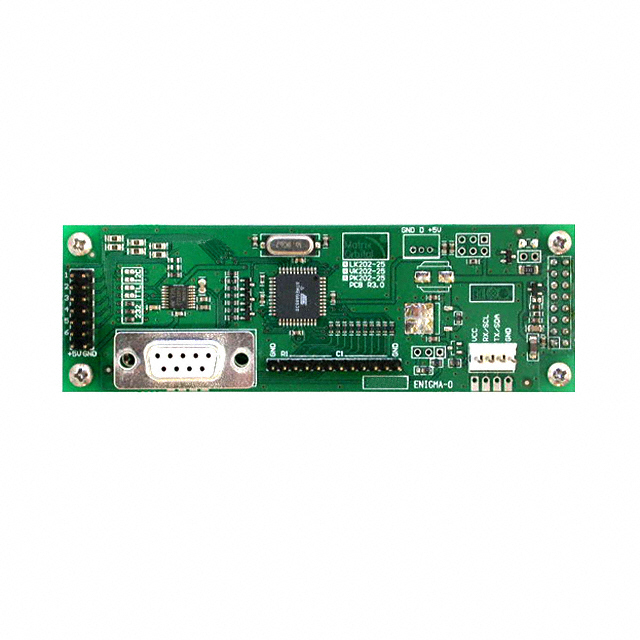

VK202-25

Active

Matrix Orbital

VFD CHARACTER DISPLAY 20CHAR X 2LINE

Search across all available documentation for this part.

Active

Matrix Orbital

VFD CHARACTER DISPLAY 20CHAR X 2LINE

Technical Specifications

Parameters and characteristics commom to parts in this series

VFD CHARACTER DISPLAY 20CHAR X 2LINE

Part	Display Format [x]	Display Format [y]	Display Type	Format [x]	Format [y]	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Interface	Viewing Area [x]	Viewing Area [y]	Character Size [y]	Character Size [z]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Format
Matrix Orbital VK202-25	20	2	Character	5 Dots	7	37 mm	29.48 mm	116 mm	Serial	89.75 mm	11.5 mm	2.4 mm	4.7 mm	-20 C	70 °C
Matrix Orbital VK202-25-E	20	2	Character	5 Dots	7	37 mm	29.48 mm	116 mm	Serial	89.75 mm	11.5 mm	2.4 mm	4.7 mm	-40 °C	85 °C	4.75 V	5.25 V
Matrix Orbital VK202-25-V	20	2	Character	5 Dots	7	37 mm	29.48 mm	116 mm	Serial	89.75 mm	11.5 mm	2.4 mm	4.7 mm	-20 C	70 °C	9 V	15 V
Matrix Orbital VK202-25-USB-E	20	4	Character	5 Dots	7	37 mm	29 mm	116 mm	USB	96 mm	24 mm	2.4 mm	4.7 mm	-40 °C	85 °C	4.75 V	5.25 V	CURS
Matrix Orbital VK202-25-USB	20	2	Character	5 Dots	7	37 mm	29 mm	116 mm	USB	96 mm	24 mm	2.4 mm	4.7 mm	-20 C	70 °C	4.75 V	5.25 V	CURS
Matrix Orbital VK202-25-V-E	20	2	Character			37 mm	29.48 mm	116 mm	I2C	70.8 mm	11.5 mm	4.7 mm	2.4 mm	-40 °C	85 °C	9 V	15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 155.54

General part information

Vacuum Fluorescent Display (VFD) 20 x 2 Character Serial 116.00mm x 37.00mm x 29.48mm
