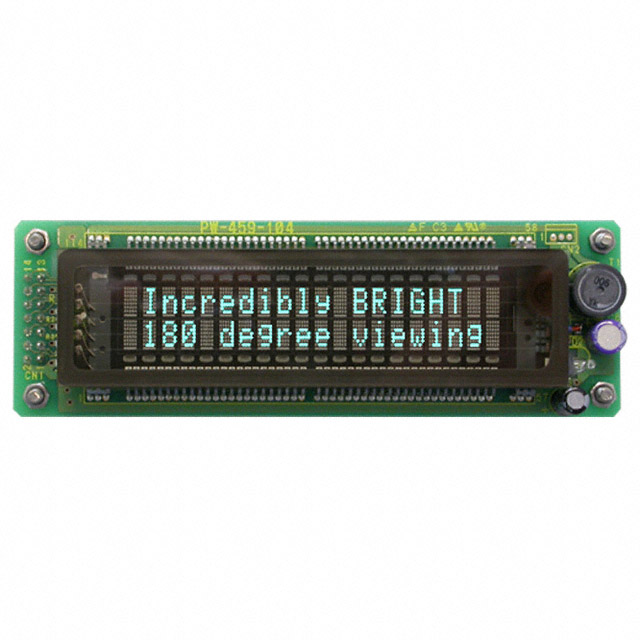

VK202-25-USB-E

Active

Matrix Orbital

VF CHARACTER DISPLAY 20X2 USB

Search across all available documentation for this part.

Active

Matrix Orbital

VF CHARACTER DISPLAY 20X2 USB

Technical Specifications

Parameters and characteristics commom to parts in this series

VFD CHARACTER DISPLAY 20CHAR X 2LINE

Part	Display Format [x]	Display Format [y]	Display Type	Format [x]	Format [y]	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Interface	Viewing Area [x]	Viewing Area [y]	Character Size [y]	Character Size [z]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Format
Matrix Orbital VK202-25	20	2	Character	5 Dots	7	37 mm	29.48 mm	116 mm	Serial	89.75 mm	11.5 mm	2.4 mm	4.7 mm	-20 C	70 °C
Matrix Orbital VK202-25-E	20	2	Character	5 Dots	7	37 mm	29.48 mm	116 mm	Serial	89.75 mm	11.5 mm	2.4 mm	4.7 mm	-40 °C	85 °C	4.75 V	5.25 V
Matrix Orbital VK202-25-V	20	2	Character	5 Dots	7	37 mm	29.48 mm	116 mm	Serial	89.75 mm	11.5 mm	2.4 mm	4.7 mm	-20 C	70 °C	9 V	15 V
Matrix Orbital VK202-25-USB-E	20	4	Character	5 Dots	7	37 mm	29 mm	116 mm	USB	96 mm	24 mm	2.4 mm	4.7 mm	-40 °C	85 °C	4.75 V	5.25 V	CURS
Matrix Orbital VK202-25-USB	20	2	Character	5 Dots	7	37 mm	29 mm	116 mm	USB	96 mm	24 mm	2.4 mm	4.7 mm	-20 C	70 °C	4.75 V	5.25 V	CURS
Matrix Orbital VK202-25-V-E	20	2	Character			37 mm	29.48 mm	116 mm	I2C	70.8 mm	11.5 mm	4.7 mm	2.4 mm	-40 °C	85 °C	9 V	15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 180.54

General part information

Vacuum Fluorescent Display (VFD) 20 x 4 Character 4.75V ~ 5.25V USB 116.00mm x 37.00mm x 29.00mm
