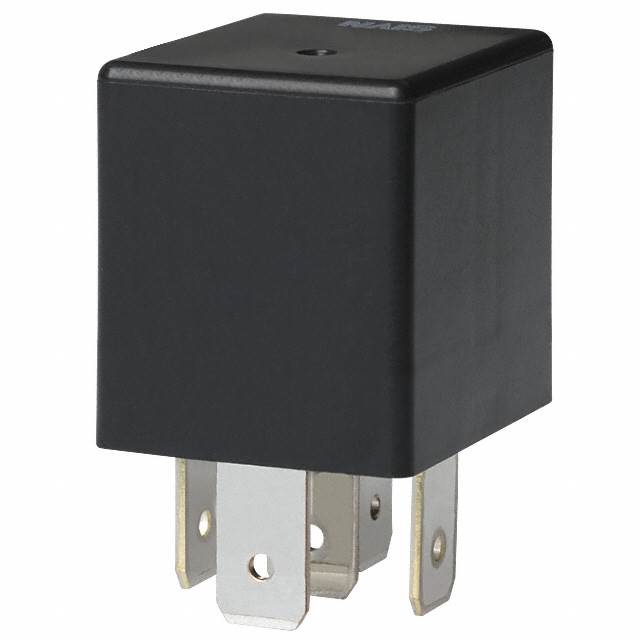

CB1F-R-24V

Active

Panasonic Electric Works

RELAY AUTOMOTIVE SPDT 20A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGeneral Appl Guidelines How to Read Date Codes

CB1F-R-24V

Active

Panasonic Electric Works

RELAY AUTOMOTIVE SPDT 20A 24V

Deep-Dive with AI

DocumentsGeneral Appl Guidelines How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CB1F-R-24V

Coil Current	84 mA
Coil Power	2 W
Coil Resistance	287 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Alloy, Cadmium Free
Contact Rating (Current)	20 A
Features	Sealed - Flux Protection, Resistor
Mounting Type	Socketable
Must Operate Voltage	14 VDC
Must Release Voltage	2.4 VDC
Operate Time	15 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Release Time	15 ms
Switching Voltage	28 VDC
Termination Style	Plug In, Quick Connect - 0.250" (6.3mm)

CB1F Series

Part	Must Operate Voltage	Coil Resistance	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Rating (Current)	Contact Form	Coil Voltage	Switching Voltage	Coil Type	Operate Time	Mounting Type	Termination Style	Coil Power	Coil Current	Features	Release Time
Panasonic Electric Works CB1F-R-M-24V	14 VDC	287 Ohms	2.4 VDC	85 °C	-40 °C	Cadmium Free Silver Alloy	20 A	SPDT (1 Form C)	24 VDC	28 VDC	Non Latching	15 ms	Chassis Mount	Quick Connect - 0.250" (6.3mm)	2 W	84 mA	Resistor Sealed - Flux Protection	15 ms
Panasonic Electric Works CB1F-SM-12V	7 VDC	103 Ohms	1.2 VDC	85 °C	-40 °C	Cadmium Free Silver Alloy	40 A	SPDT (1 Form C)	12 VDC	14 VDC	Non Latching	15 ms	Chassis Mount	Quick Connect - 0.250" (6.3mm)	1.4 W	117 mA	Sealed - Flux Protection	15 ms
Panasonic Electric Works CB1F-T-R-12V	7 VDC		1.2 VDC	125 °C	-40 °C	Cadmium Free Silver Alloy	40 A	SPDT (1 Form C)	12 VDC	14 VDC	Non Latching	15 ms	Socketable	Plug In Quick Connect - 0.250" (6.3mm)	1.6 W	134 mA	Resistor Sealed - Flux Protection	15 ms
Panasonic Electric Works CB1F-T-12V	7 VDC	103 Ohms	1.2 VDC	125 °C	-40 °C	Cadmium Free Silver Alloy	40 A	SPDT (1 Form C)	12 VDC	14 VDC	Non Latching	15 ms	Socketable	Plug In Quick Connect - 0.250" (6.3mm)	1.4 W	117 mA	Sealed - Flux Protection	15 ms
Panasonic Electric Works CB1F-24V	14 VDC	320 Ohms	2.4 VDC	85 °C	-40 °C	Cadmium Free Silver Alloy	20 A	SPDT (1 Form C)	24 VDC	28 VDC	Non Latching	15 ms	Socketable	Plug In Quick Connect - 0.250" (6.3mm)	1.8 W	75 mA	Sealed - Flux Protection	15 ms
Panasonic Electric Works CB1F-M-24V	14 VDC	320 Ohms	2.4 VDC	85 °C	-40 °C	Cadmium Free Silver Alloy	20 A	SPDT (1 Form C)	24 VDC	28 VDC	Non Latching	15 ms	Chassis Mount	Quick Connect - 0.250" (6.3mm)	1.8 W	75 mA	Sealed - Flux Protection	15 ms
Panasonic Electric Works CB1F-M-12V	7 VDC	103 Ohms	1.2 VDC	85 °C	-40 °C	Cadmium Free Silver Alloy	40 A	SPDT (1 Form C)	12 VDC	14 VDC	Non Latching	15 ms	Chassis Mount	Quick Connect - 0.250" (6.3mm)	1.4 W	117 mA	Sealed - Flux Protection	15 ms
Panasonic Electric Works CB1F-R-WM-24V	14 VDC	287 Ohms	2.4 VDC	85 °C	-40 °C	Cadmium Free Silver Alloy	20 A	SPDT (1 Form C)	24 VDC	28 VDC	Non Latching	15 ms	Chassis Mount	Quick Connect - 0.250" (6.3mm)	2 W	84 mA	Resistor Sealed - Flux Protection	15 ms
Panasonic Electric Works CB1F-P-12V	7 VDC	103 Ohms	1.2 VDC	85 °C	-40 °C	Cadmium Free Silver Alloy	40 A	SPDT (1 Form C)	12 VDC	14 VDC	Non Latching	15 ms	Through Hole	PC Pin	1.4 W	117 mA	Sealed - Flux Protection	15 ms
Panasonic Electric Works CB1F-R-24V	14 VDC	287 Ohms	2.4 VDC	85 °C	-40 °C	Cadmium Free Silver Alloy	20 A	SPDT (1 Form C)	24 VDC	28 VDC	Non Latching	15 ms	Socketable	Plug In Quick Connect - 0.250" (6.3mm)	2 W	84 mA	Resistor Sealed - Flux Protection	15 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.42
		10	$ 5.09
		25	$ 4.52
		50	$ 4.29
		100	$ 4.07
		250	$ 3.62
		500	$ 3.39
		1000	$ 3.16
